Fitment:
Fit Ford passenger cars with 289, 302 & 351W Engines 1969 1/2+
Fit Ford trucks 1977+
Fit Ford 351 Cleveland Engines (351C) All
Fit Ford 351 Modified Engines (351M) All
Fit Ford 400 V8 Engines All
Fits vehicles with:
Factory 4 bolt damper (Aftermarket dampers may require 0.950" spacer)
Water Pump with Driver's side lower radiator hose.
Dampener face to water pump flange face 3 1/4"
Fits the following models with original 289, 302 & 351W small block engines installed.
Note: 1969 model was a transition for small blocks and you need to check your water pump and number of bolts on crank pulley.
Fit Ford Mustang 1969-1985
Fit Mustang II 1974-1978
Fit Gran Torino 1972-1975
Fit Galaxie 500 1969-1974
Fit Fairlane 1969-1970
Fit Falcon 1962-1970
Fit Thunderbird 1969-1985
Fit Ranchero 1977-1979
Fit Bronco 1977-1985
Fit F-150 1977-1985
Fit F-250 1977-1985
Fit F-350 1977-1985
**It is not recommended that you select small block pulleys based on model alone because often the original engine has been swapped. The over-riding factor in selecting the right small block pulleys should be which side the lower radiator hose is on and number of crank pulley bolts.
Specifications:
- Made of CNC Machined 6061-T6 Billet Aluminum
- Finish: Anodized
- Easy Bolt-on application. No Cutting, drilling or welding need.
- Design for reducing weight to provides 88% underdriven ratio to maintain proper cooling and charging function.
- Can be used with stock power steering and alternator bracket.
- 2V Water Pump Pulley Grooves: 2
- 3V Crankshaft Pulley Grooves: 3
- Alternator Pulley Grooves: 1
Note:
- **This kit will make Crankshaft and Alternator Groove closest to the radiator**
Fits Passenger Cars with:
- 1. Factory 4 bolt fluid dampener (aftermarket dampeners will require a spacer)
- 2. Driver's side lower radiator hose.
- 3. Damper face to water pump flange face of 3 1/4"

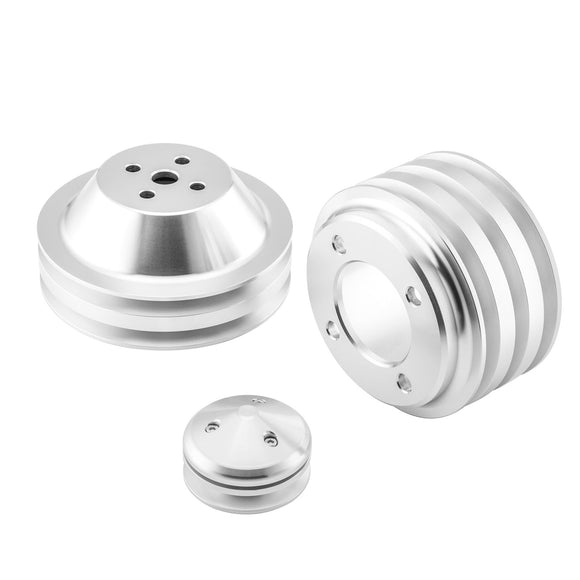

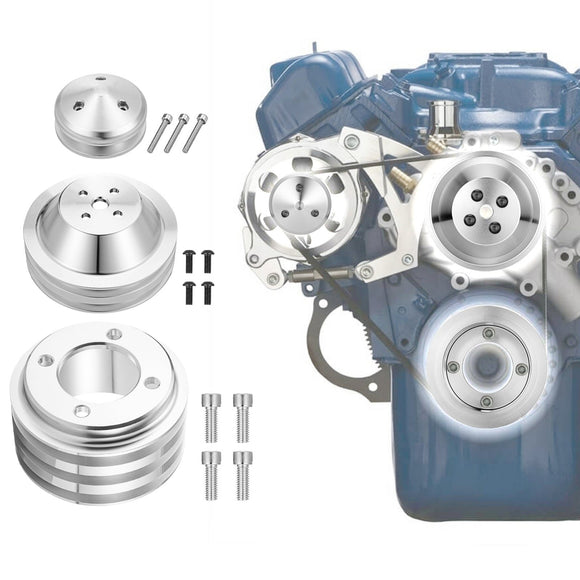

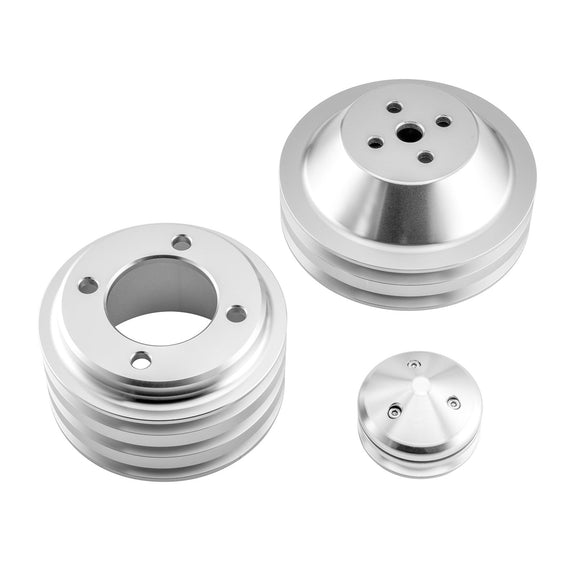

Package Included:
- 1x 2V Water pump pulley
- 1x 3V Crankshaft Pulley
- 1x Alternator Pulley
- Not come with instruction.
