Fitment:
- Fit Brute Force 650 4x4 2005-2014
- Fit Brute Force 650 4x4i 2006-2014
- Fit Brute Force 750 4x4, 4x4i, 4x4i EPS 2005-2026
Specifications:
- Item: Winch Mounting Bracket
- Material: Heavy-Duty Steel
- Color: Black
- Process: Powder Coated
Features:
【Wide Compatibility Winch Mount】
An ideal Mount To Hold The Winches, which Provides mounting holes for installing and securing the winch simply and reliably.
Fits Brute Force 650 4x4 2005-2014, fits Brute Force 650 4x4i 2006-2014, fits Brute Force 750 4x4, 4x4i, 4x4i EPS 2005-2026.

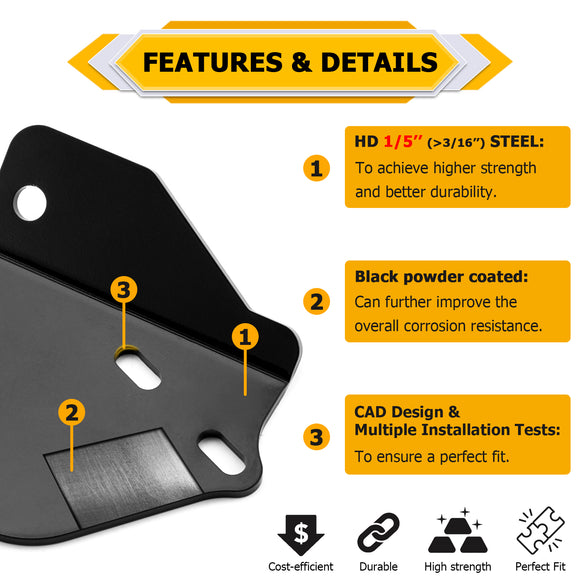

【Powerful Durability & Strength】
Made Of Heavy-Duty Steel， Solid steel makes it high strength, and it could be more durable. So you don't need to do frequent replacements. Black Powder Coated Surface surface technology makes it more resistant to rust, thus extending its life and maintaining the aesthetics of your vehicle.
【Ideal Fitment & Mounting Pattern】
Through Computer-aided design and Multiple Fitment Tests to ensure the ideal fit. You could buy a suitable product the first time, which reduces your worries.
Compatible with Most U.S. Standard Winches & Fairleads (Please check the size before purchasing)

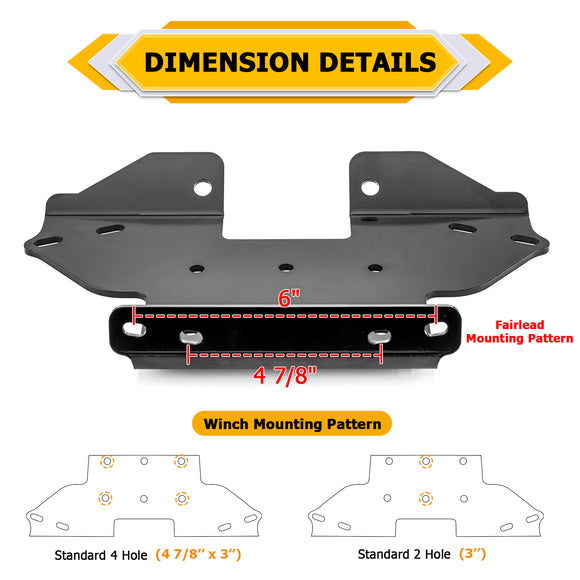

Size:Winch Mounting Pattern:①Standard 4-Hole 3"x4 7/8" (76mm x 124mm), ②2-Hole 3"(76mm )
Fairlead Mounting Pattern: 4 7/8" (124mm)
【Easy Installation & Reliable Service】
Installation can be completed using conventional tools with its simple bolt-on design, No drilling or modification is required.
Powerful Support Team could reply to you and provide you with a full range of satisfactory services and solve your problem.

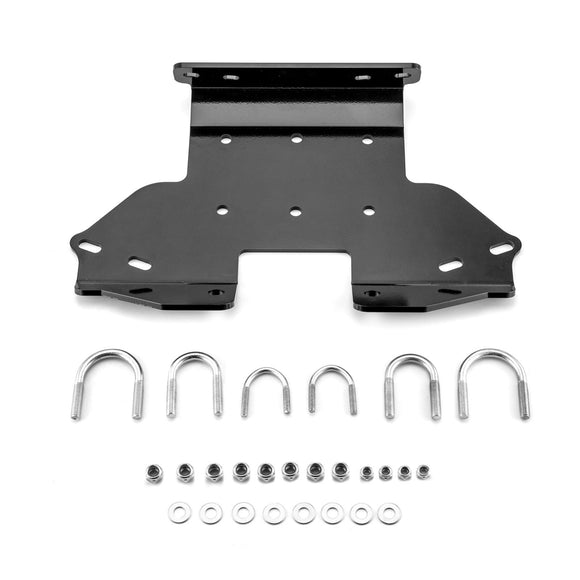

Package list:
- 1x Winch Mounting Plate
- 1x Installation Instruction
Designed to work with the following winches:
Fit KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
Fit KFI: AM-25 / AM-35 / AS-25 / AS-35
Fit Brute Force 750 ONLY: Fit KFI: U45-R2 / SE45-R2
Fit KFI: AS-50 (Requires purchase of ATV-MR)
Fit WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
Fit WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
Fit WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
Fit WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
Fit RAMSEY: ATV2500 / ATV3000
Fit SUPERWINCH: Terra25 / Terra35 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
Fit MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
Fit MASTER LOCK: 1500lbs #2955AT
Requires roller fairlead with a 4.875" bolt pattern;
Fit CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500, 3500
Fit BADLAND: 2-Hole Winches
Fit BADLAND: Standard Winches
Fit CHAMPION: 2-Hole Winches
Fit CHAMPION: Standard Winches
Fit KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C
Fit KEEPER CORP. TRAKKER: KT2000
Requires roller fairlead with a 4.875" bolt pattern;
Fit SMITTYBILT: XRC 2.0
Requires roller fairlead with a 4.875" bolt pattern;
Listed models come with incorrect ATV roller fairleads.
Fit SMITTYBILT: XRC 3.0 / XRC 4.0
Fit XGEAR: X3000 / X4000
Fit 4-Hole Standard (3.00" x 4.875" bolt pattern)
Fit VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Standard ONLY)
Fit 4-Hole Standard 3.00" x 4.875" bolt pattern with Rollers that are 4.875" bolt pattern)
Fit Traveller: 1078088 / 1078302
Requires roller fairlead with a 4.875" bolt pattern;
Possibly many others with the below standard mounting patterns, call to confirm.
Fit 4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
Fit 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
Fit QUADBOSS: RP25 / RP35
