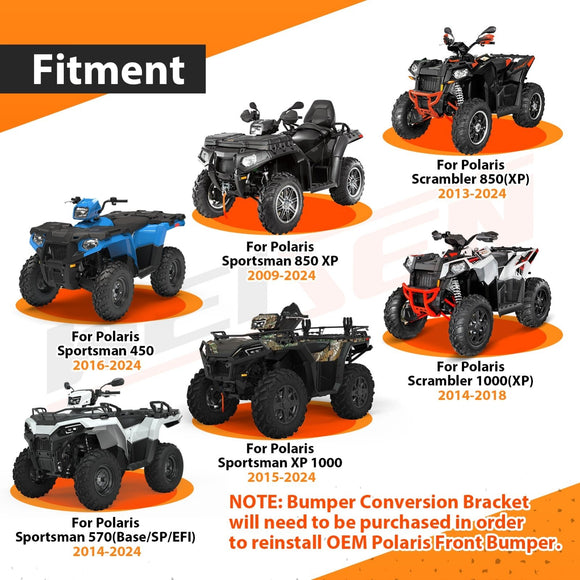

Fitment List:
- 2013-2024 Scrambler 850 (XP)
- 2014-2018 Scrambler 1000 (XP)
- 2015 Sportsman ETX (Hawkeye)
- 2011-2014 Sportsman 400
- 2016-2024 Sportsman 450
- 2021-2024 Sportsman 450 Utility Edition (!!! SEE NOTE Below)
- 2011-2013 Sportsman 500
- 2011-2013 Sportsman 500 Touring
- 2009-2014 Sportsman 550 (XP)
- 2010-2014 Sportsman 550 Touring
- 2010-2014 Sportsman 550 X2
- 2014-2024 Sportsman 570 (Base/SP/EFI)
- 2014-2020 Sportsman 570 EPS (Base/Utility)
- 2021-2024 Sportsman 570 EPS (!!! SEE NOTE Below)
- 2020 Sportsman 570 Premium
- 2021-2024 Sportsman 570 Premium (!!! SEE NOTE Below)
- 2021-2024 Sportsman 570 Utility HD LE (!!! SEE NOTE Below)
- 2014-2024 Sportsman 570 Touring
- 2015-2022 Sportsman 570 X2
- 2011-2014 Sportsman 800
- 2009-2024 Sportsman 850 (XP, Highlifter)
- 2010-2024 Sportsman 850 Touring
- 2011 Sportsman 850 X2
- 2015-2024 Sportsman XP 1000
- 2015-2024 Sportsman XP 1000 Touring
- 2011-2024 Sportsman 6x6 Big Boss
NOTE: Bumper Conversion Bracket will need to be purchased in order to reinstall OEM Polaris Front Bumper.

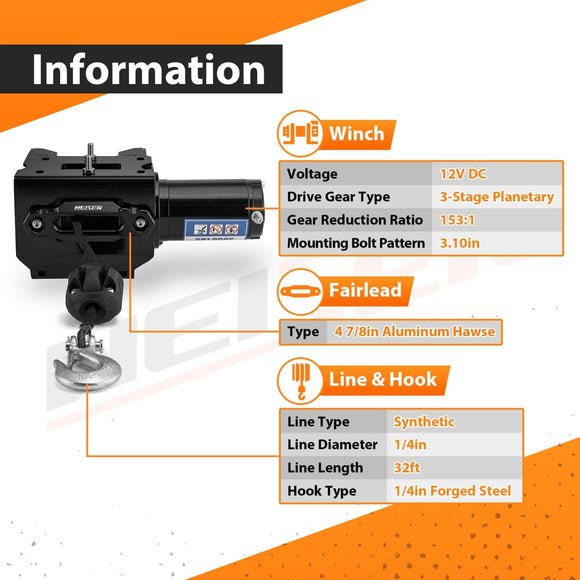

Specifications:
- Winch Type: Electric
- Voltage: 12 Volt DC
- Motor Type: Permanent Magnet Motor
- Drive Gear Type: 3-stage Planetary
- Gear Reduction Ratio 153:1
- Line Type: Synthetic
- Line Diameter (in): 1/4 inch
- Line Length (ft): 32 ft
- Max Line Pull: 3000lbs
- Line Speed: 13.6ft/min(No Load)/ 2.72ft/min(Full Load)
- Hook Type: 1/4 Inch Forged Steel
- Line Stopper Type: Maximum Diameter 1/2 inch Quality Rubber Line Stopper
- Winch Mounting Bolt Pattern(in): 3.10 inch
- Fairlead Type: 4 7/8 inch Aluminum Hawse
- Remote Type: Wired Controller (adapted to handlebars) + Wireless Remote Control With 100ft Control Range
Features:
【Fitment】
This Electric Winch Kit fits 2013-2024 Scrambler 850 (XP), 2014-2018 Scrambler 1000 (XP), 2016-2024 Sportsman 450, 2015-2024 Sportsman XP 1000, 2021-2024 Sportsman 570 EPS (!!! SEE NOTE Below) and etc. (Please check fitment before your purchase)

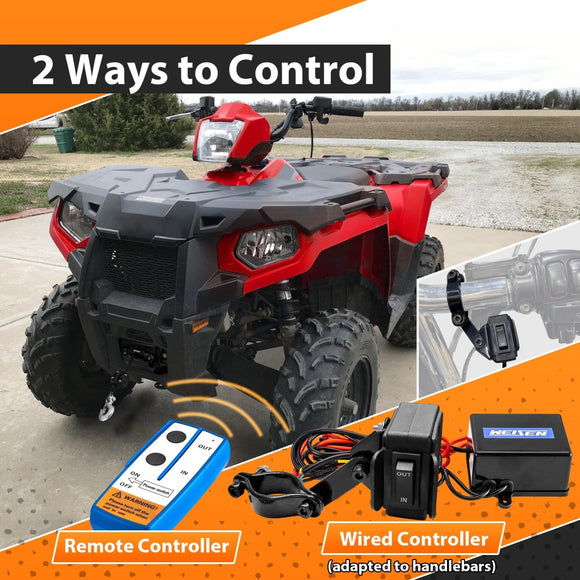

【Wired/Wireless Control】
Winch kits offer both wired and wireless controllers to control ROPE IN and ROPE OUT.
You can mount the wired controller directly to the ATV handlebar without modification or drilling, giving the handlebar a neat look. Or use the remote switch for wireless control. (Remote control range up to 100 feet), and you don't have to touch the dangerous rope directly, making it safer and more convenient for everyday use.
【3000 lbs Line Pull】
Equipped with a 3-stage Planetary Drive Gear system and 153:1 gear speed ratio that delivers reliable pulling power with a weight capacity of up to 3000 lbs. it excels in towing tasks such as pulling heavy loads, relieving stuck vehicles, and navigating challenging terrains.
【High Quality】
Made of 1/4" 32FT Synthetic Line, compared to steel cables, it can withstand more traction, is lighter and safer, won't rust, won't burr, and is easy to use.
The 4 7/8" Hawse Fairlead is a heavy-duty 6061 aluminum material + a corrosion resistant anodized black process, It can withstand harsh weather conditions and rough terrain and keep working normally.

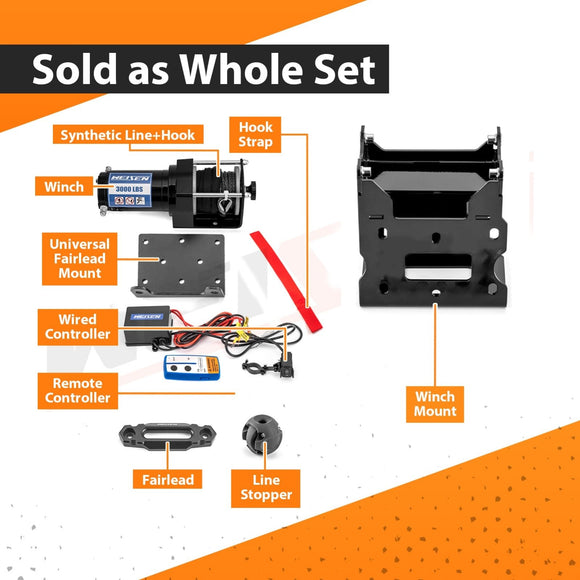

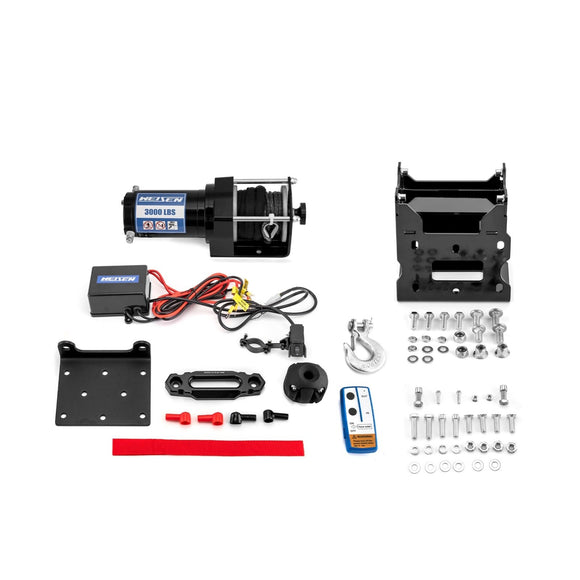

【Sold As Whole Set】
Package includes all needed parts:
1 x 3000lbs Electric Winch
1 x Winch Mounting Bracket
1 x Universal Fairlead Mounting Bracket
1 x 4 7/8" Aluminum Hawse Fairlead
1 x 1/4" Synthetic Line
1 x 1/4" Forged Steel Hook
1 x Line Stopper
1 x Wired Controller (adapted to handlebars)
1 x Wireless Remote Control
1 x Installation Instructions
