Fitment:
- Fit Kawasaki Teryx4 750 2012-2013
- Fit Kawasaki Teryx4 800 2014-2023
- Fit Kawasaki Teryx 800 2014-2023
Specifications:
- Item: UTV Winch Mounting Bracket
- Material: Heavy-Duty Steel
- Process: Black Powder Coated
Features:
【Wide Compatibility Winch Mount】

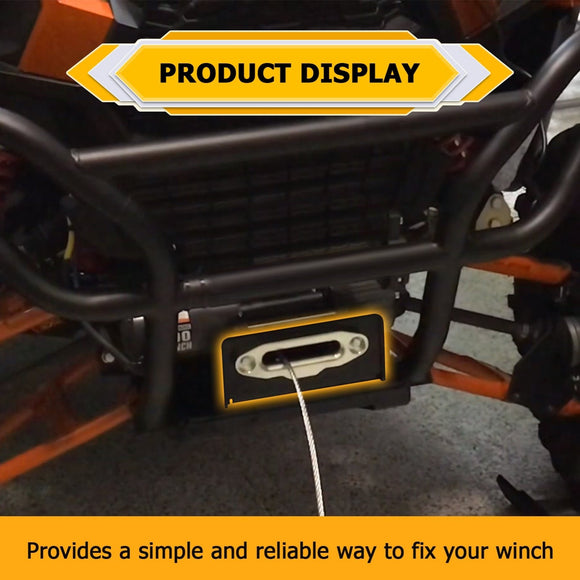

An ideal Mount To Hold The Winches, which Provides mounting holes for installing and securing the winch simply and reliably.
Fits Kawasaki Teryx4 750 2012-2013, fits Teryx4 800 2014-2023, fits Teryx 800 2014-2023.
【Powerful Durability & Strength】

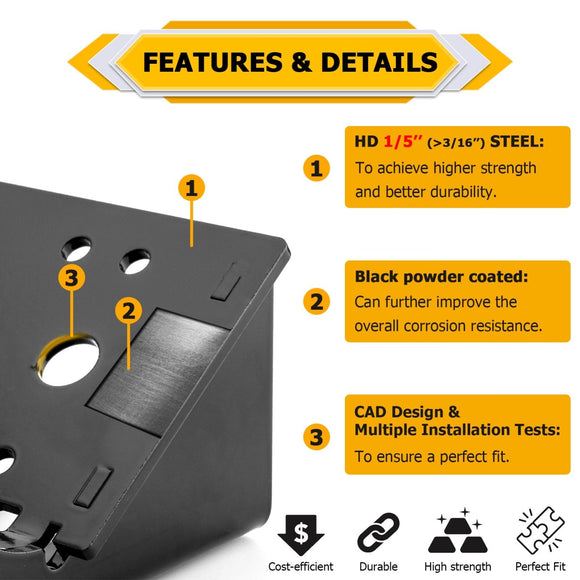

Made Of Heavy-Duty Steel， Solid steel makes it high strength, and it could be more durable. So you don't need to do frequent replacements. Black Powder Coated Surface surface technology makes it more resistant to rust, thus extending its life and maintaining the aesthetics of your vehicle.
【Ideal Fitment & Mounting Pattern】
Through Computer-aided design and Multiple Fitment Tests to ensure the ideal fit. You could buy a suitable product the first time, which reduces your worries.
Compatible with Most U.S. Standard Winches & Fairleads (Please check the size before purchasing)

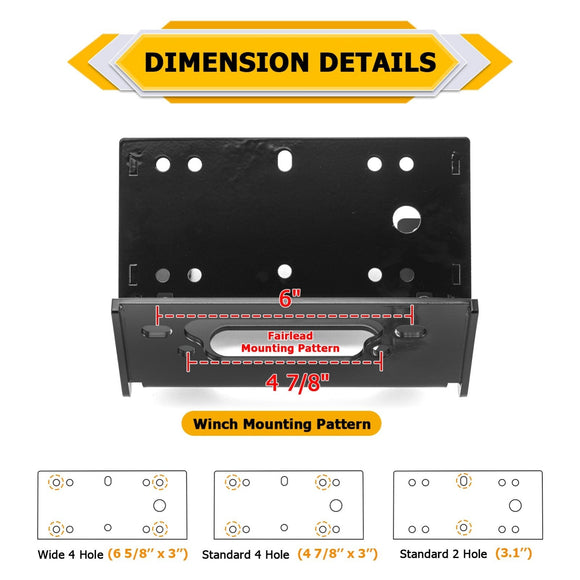

Size:Winch Mounting Pattern:①Standard 4-Hole 3"x4 7/8" (76mm x 124mm), ②Wide 4 Hole 3"x 6 5/8" (76mm x 169mm), ③2-Hole 3.10"(78mm )
Fairlead Mounting Pattern: ①4 7/8" (124mm), ②6" (152mm)
【Easy Installation & Reliable Service】
Installation can be completed using conventional tools with its simple bolt-on design, No drilling or modification is required.
Powerful Support Team could reply to you and provide you with a full range of satisfactory services and solve your problem.
Package list:

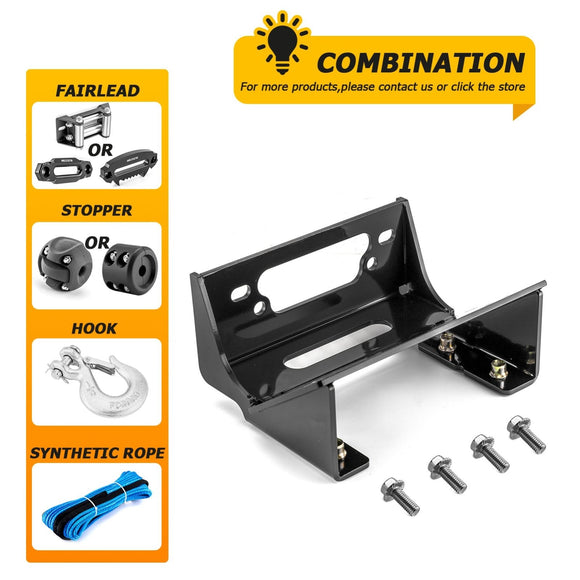

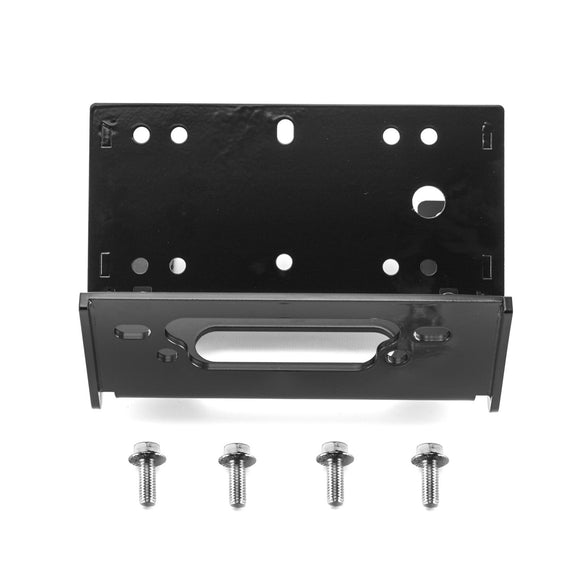

- 1x Winch Mounting Plate
- 1x Installation Instruction
Designed to work with the following winches:
Fit KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 (U45w-R2 and SE45w-R2 will NOT work on 2014-19 models)
Fit KFI: AM-25 / AM-35 / AS-25 / AS-35
Fit KFI: AS-50 / AS-50w
Fit WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
Fit WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
Fit WARN: RT40 / XT40
Fit WARN: Vantage 2000-3000lb (Will NOT work with Vantage 4000 due to motor lead orientation)
Fit WARN: ProVantage 2500-4500lbs
Fit ProVantage 3500 and 4500 will require lead rotation.
Fit RAMSEY: ATV2500 / ATV3000
Fit SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
Fit MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
Fit MASTER LOCK: 1500lbs #2955AT
Requires roller fairlead with a 4.875" bolt pattern;
Fit CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
Fit BADLAND: 2-Hole Winches
Fit BADLAND: Standard Winches
Fit BADLAND: WIDE Winches
Fit CHAMPION: 2-Hole Winches
Fit CHAMPION: Standard Winches
Fit CHAMPION: WIDE Winches
Fit KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
Fit KEEPER CORP. TRAKKER: KT2000
Requires roller fairlead with a 4.875" bolt pattern;
Fit SMITTYBILT: XRC 2.0
Requires roller fairlead with a 4.875" bolt pattern;
Listed models come with incorrect ATV roller fairleads.
Fit SMITTYBILT: XRC 3.0 / XRC 4.0
Fit XGEAR: X3000 / X4000
Fit 4-Hole Standard (3.00" x 4.875" bolt pattern)
Fit VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
All with 3.00" x 4.875" bolt pattern mount-up
All with 3.00" x 6.600" bolt pattern mount-up
Fit Traveller: 1078311 (1078311 Will NOT work on 2014-2015 models)
Fit Traveller: 1078088 / 1078302
Requires roller fairlead with a 4.875" bolt pattern;
Possibly many others with the below standard mounting patterns, call to confirm.
Fit 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
Fit 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
Fit 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
Fit QUADBOSS: RP25 / RP35
