Fiment list：
- Can am Maverick 1000R '13-18
- Can am Maverick 1000R Turbo 2018
- Can am Maverick X mr 1000R '14-18
- Can am Maverick X rs 1000R '13-18
- Can am Maverick X xc 1000R '14-18
- Can am Maverick xc 1000R 2018
- Can am Maverick Max 1000R & Turbo '14-18**
- Can am Maverick Max X rs 1000R 2014-2018**
!Will NOT work on any "X ds" or "X rs Turbo" Models with aluminum front bumper!
** = Requires the purchase of wire extension kit Due to location of battery.
Designed to work with the following winches
- KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
- KFI: AS-50 / AS-50w
- WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
- WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN:RT40 / XT40
- WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
- WARN:Vantage 4000lbs / Provantage 4500lbs
- RAMSEY : ATV2500 / ATV3000
- SUPERWINCH : Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
- MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- MASTER LOCK :1500lbs #2955AT
- Requires fairlead with a 4.875" bolt pattern.
- CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500, 3500
- BADLAND: 2-Hole Winches
- 68146 / 61258 / 61297 / 61840 / 63476 / 56258（Requires roller fairlead with a 4.875" bolt pattern）
- BADLAND: Standard Winches
- 68146 / 61258 / 61297 / 61840 / 63476 / 56258（Requires roller fairlead with a 4.875" bolt pattern）
- BADLAND: WIDE Winches
- 61384
- 68144 / 61605 / 56326（Requires roller fairlead with a 6.0" bolt pattern）
- CHAMPION : 2-Hole Winches
- 10028 / 10032 / 12001 / 12002 / 12003 / 12004 / 13001 / 13005 / 100127 / C20049 / C20051 / C20249 / C30045 / C30145 (Requires roller fairlead with a 4.875" bolt pattern)
- 100600（ATV-RF NOT required）
- CHAMPION : Standard Winches
- 10013 / 10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 13502 / 14001 / 14061 / 100129 / 100218 / 100243 / 100335 / 100428 / 100631 / C10014 (ATV-RF NOT required)
- 13060 / 13501（Requires roller fairlead with a 4.875" bolt pattern）
- KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
- KEEPER CORP. TRAKKER :KT2000
- Requires roller fairlead with a 4.875" bolt pattern.
- SMITTYBILT :XRC 2.0
- Requires roller fairlead with a 4.875" bolt pattern.
- Listed models come with incorrect ATV roller fairleads.
- SMITTYBILT :XRC 3.0 / XRC 4.0
- XGEAR: X3000 / X4000

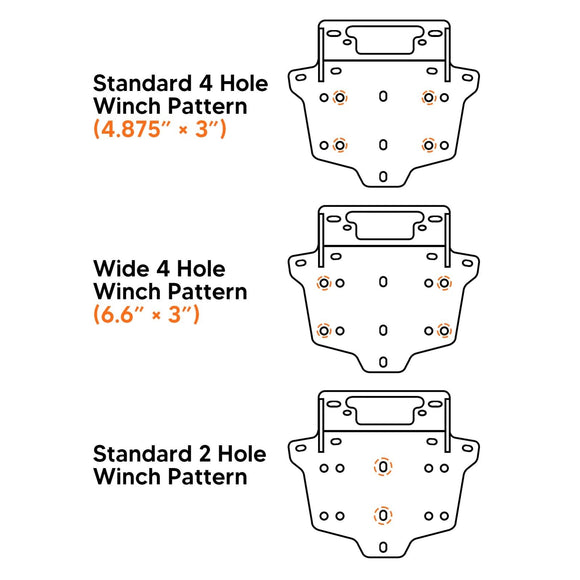

- 4-Hole Standard (3.00" x 4.875" bolt pattern)
- VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 3.00" x 4.875" bolt pattern mount-up
- All with 3.00" x 6.600" bolt pattern mount-up
- Traveller:1078088 / 1078302
- Requires roller fairlead with a 4.875" bolt pattern
Specifications：
- No drlling or cutting to install；

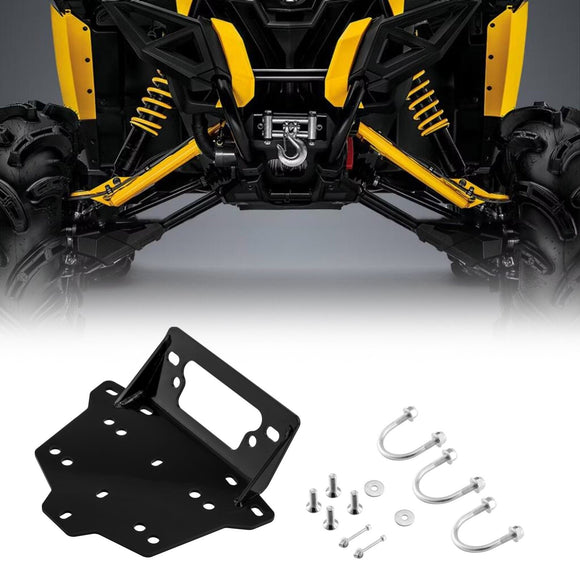

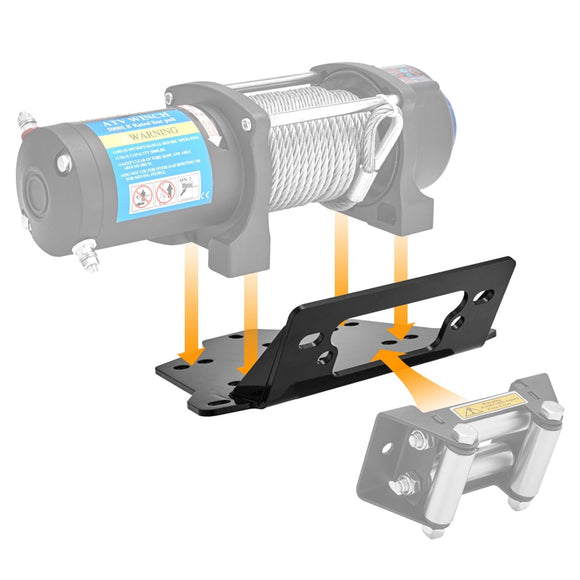

- Offer a winch mounting Positon on front of Your UTV；
- Accurate measurement and design ensure a perfect fit.
- Made of solid steel with powder coated black surface to protect ；

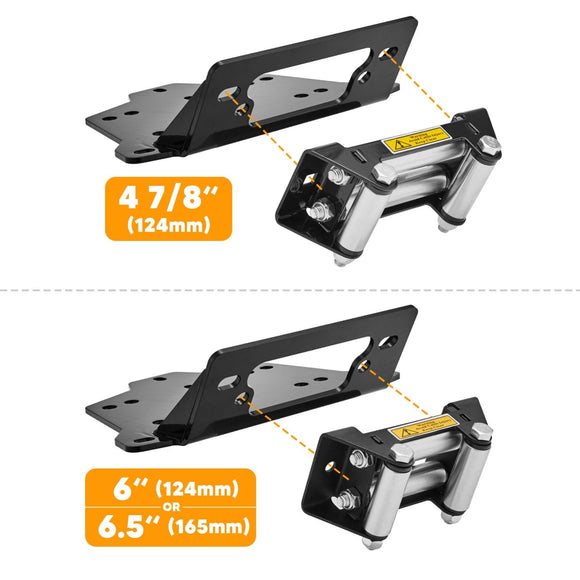

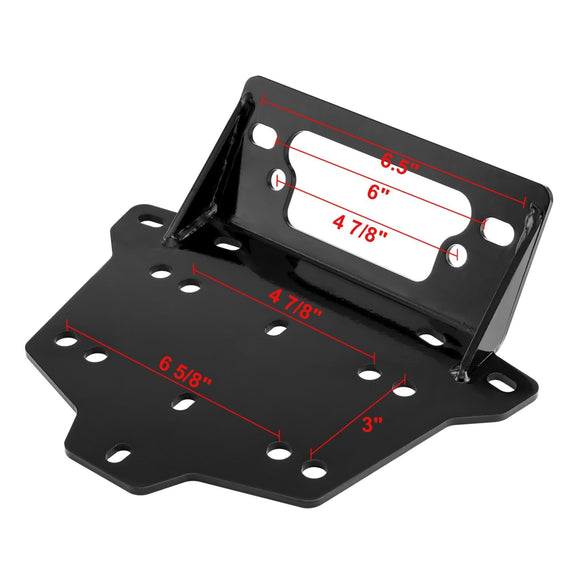

- Can work with Most winches with US Standard Fairlead(Fairlead Bolt Pattern 4 7/8”(124mm)、6”(152mm)、6.5”(165mm)）；
- Come with installation instruction；
Package Included:

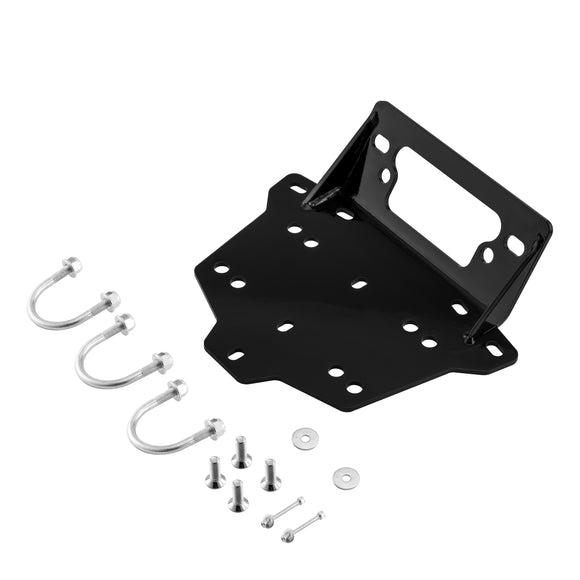

- >>1 x Winch Mounting bracket Kit include necessary hardware.
