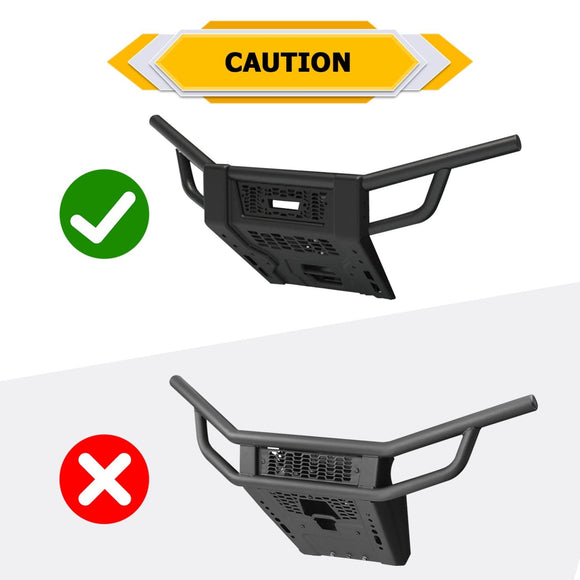

Note: Only fit 2015 Ranger 570 (900 Body Style / Pro-Fit Frame), not fit 2016-Current Ranger 570 (800 Body Style / Round Tube Frame)!!!
Fitment:
Polaris Ranger Fullsize Models (Fullsize only, not fit Midsize)
- 2015 Ranger 570 (900 Body Style / Pro-Fit Frame)
- 2015-2016 Ranger Crew 570 (900 Body Style / Pro-Fit Frame)**
- 2016 Ranger XP 570 (900 Body Style / Pro-Fit Frame)
- 2013-2018 Ranger Brutus (Base*CAB)
- 2014-2019 Ranger Crew 900**
- 2013-2019 Ranger XP 900
- 2015-2018 Ranger Diesel (1000)
- 2015-2018 Ranger Crew Diesel (1000)**
- 2014-2017 Ranger Diesel HST / Deluxe
- 2017 Ranger XP 1000
- 2017-2018 Ranger Crew XP 1000**
- 2017 Ranger XP 1000 Northstar Edition
- 2017-2018 Ranger Crew XP 1000 Northstar Edition**
- 2019-Current Ranger Pro XD (Gas / Diesel)
- 2019-Current Ranger Crew Pro XD (Gas / Diesel)**
Gravely Models
- Fit Gravely ATLAS JSV all models
**: Extension wires may be needed due to the location of the battery in the 4-seat model

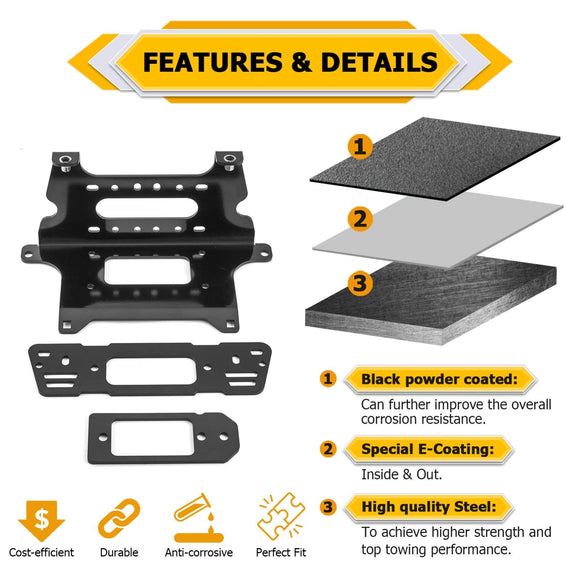

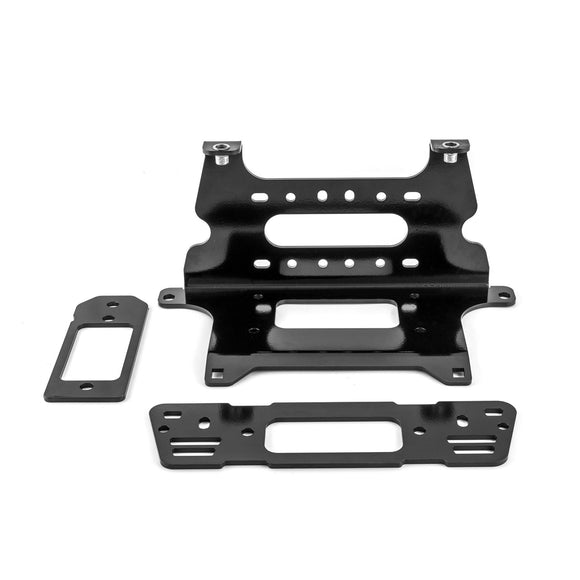

Specifications of winch mount plate:
- >>【FUNCTION】Provides a simple and reliable way to secure your winch.
- >>【WIDE APPLICATION】Can work with most US Standard winches and fairleads.

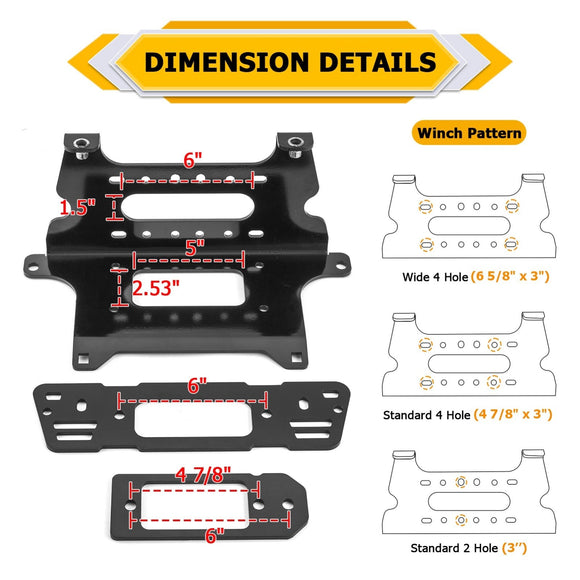

- Winch Mounting Pattern：①3"x4 7/8" (76mm x 124mm), ②3"x 6 5/8" (76mm x 169mm), ③3"(Standard 2 Hole).
- Fairlead Mounting Pattern：①4 7/8" (124mm), ②6" (152mm).
- >>【MATERIAL】Made of Premium Solid Steel to achieve better durability and higher strength.
- >>【PROCESS】Black powder coated: can further improve the overall corrosion resistance, prolong the service life, and maintain an attractive appearance in the next few years.
- >>【PRECISION】Computer-aided design and laser-cut to ensure the perfect fit.
- >>【INSTALLATION】Easy Bolt-on installation and takes about 45 minutes.（No drilling or modification required）

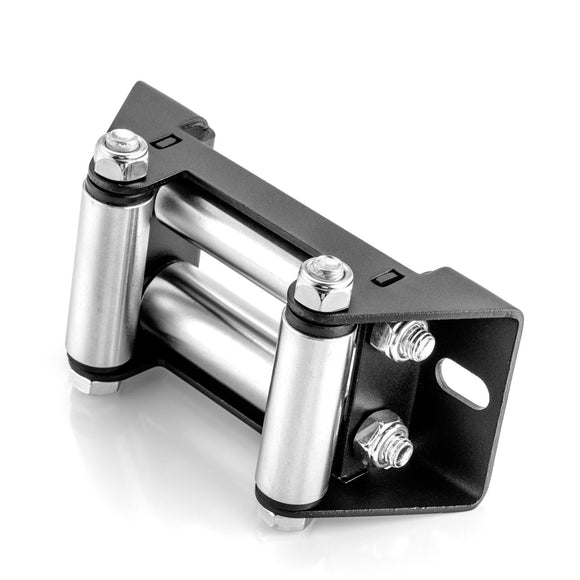

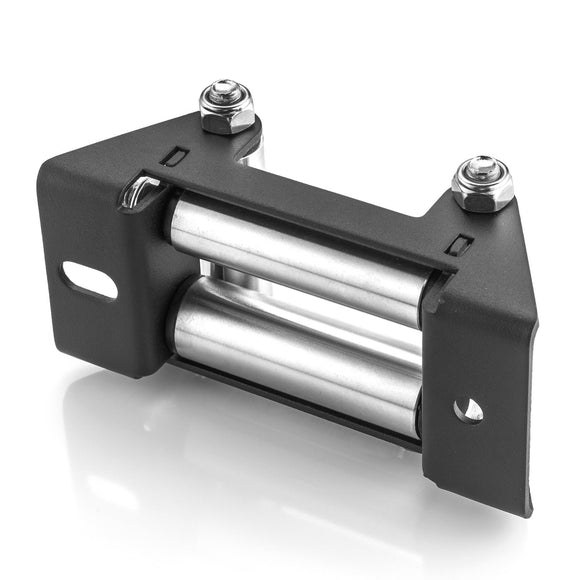

Specifications of winch fairlead:
- >>【FUNCTION】Protect and reduce wear on the rope and at the same time protect the winch from unneccessary damage.
- >>【MOUNTING PATTERN】4 7/8"INCH (124 MM).
- >>【EXCELLENT PERFORMANCE】Load Capacity：1500-4500lbs.
- >>【MATERIAL】Made of quality CNC 6061 Aluminum to achieve better durability and higher hardness.
- >>【PROCESS】Black anodized：can further improve the overall corrosion resistance, prolong the service life, and maintain an attractive appearance in the next few years.
- >>【PRECISION】Computer-aided design and laser-cut to ensure the perfect fit.
- >>【INSTALLATION】Easy Bolt-On Installation and takes only takes a few minutes.（No drilling or modification required）
- >>【NOTE】Suitable for synthetic rope, not for steel cable.

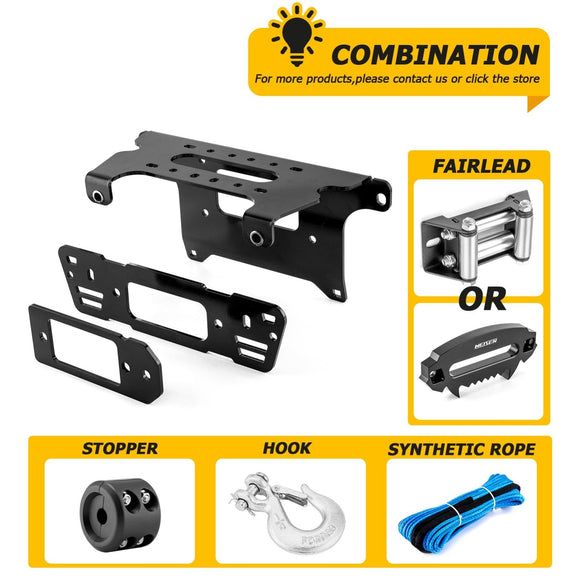

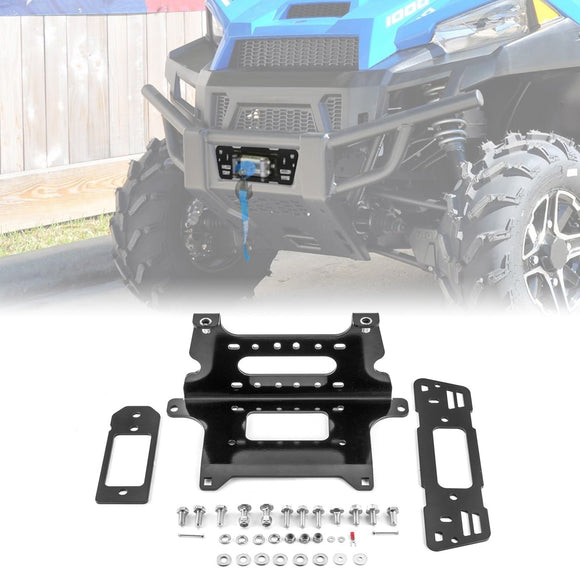

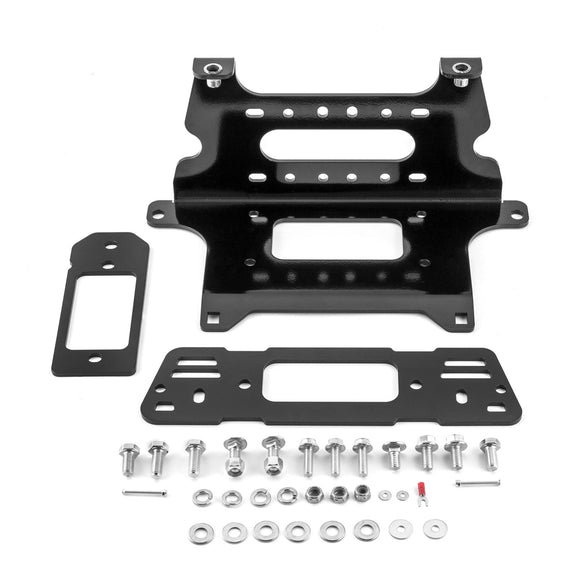

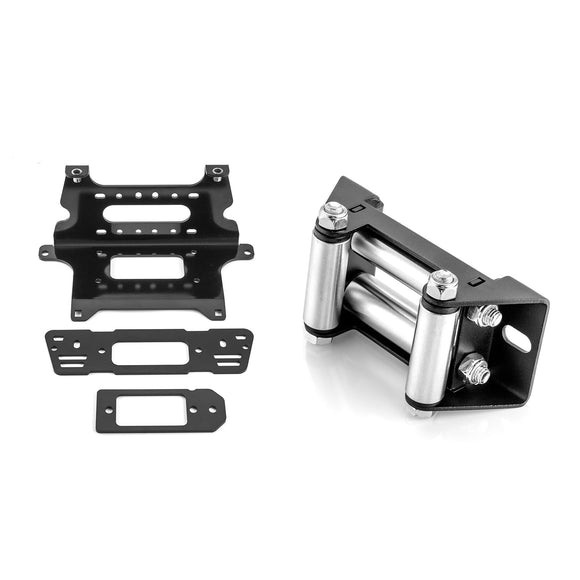

Package Includes:
- depending on the item you choose
Designed to work with the following winches:
- KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
- KFI: AM-25 / AM-35 / AS-25 / AS-35
- KFI: AS-50 / AS-50w
- WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
- WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN: RT40 / XT40
- WARN: Vantage 2000-4000lb
- WARN: ProVantage 2500-4500lbs
- RAMSEY: ATV2500 / ATV3000
- SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
- MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
- BADLAND: 2-Hole Winches
- BADLAND: Standard Winches
- BADLAND: WIDE Winches
- CHAMPION: 2-Hole Winches
- CHAMPION: Standard Winches
- CHAMPION: 4500-5000lb Narrow Winch
- CHAMPION: 4500-5000lb WIDE Winch
- KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
- KEEPER CORP. TRAKKER: KT2000
- Requires roller fairlead with a 4.875" bolt pattern;
- SMITTYBILT: XRC 2.0
- Requires roller fairlead with a 4.875" bolt pattern;
- Listed models come with incorrect ATV roller fairleads.
- SMITTYBILT: XRC 3.0 / XRC 4.0
- XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern)
- VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 3.00" x 4.875" bolt pattern mount-up
- All with 3.00" x 6.600" bolt pattern mount-up
- Traveller: 1078311
- Traveller: 1078088 / 1087302
- Requires roller fairlead with a 4.875" bolt pattern;
- Possibly many others with the below standard mounting patterns, call to confirm.
- 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
- 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
- QUADBOSS: RP25 / RP35
