Fitment:
- >>2014-2023 RZR XP1000 and XP1000-4
- >>2016-2023 RZR 900
- >>2016-2023 RZR-S 1000
Specifications of Bracket Mount:
- >>【FUNCTION】Provides an easy and reliable way to secure the 32" light bar to the roof.
- >>【MATERIAL】Made of Premium Solid Steel to achieve better durability and higher strength.
- >>【PROCESS】Black powder coated: can further improve the overall corrosion resistance, prolong the service life, and maintain an attractive appearance in the next few years.
- >>【PRECISION】Computer-aided design and laser-cut to ensure the perfect fit.

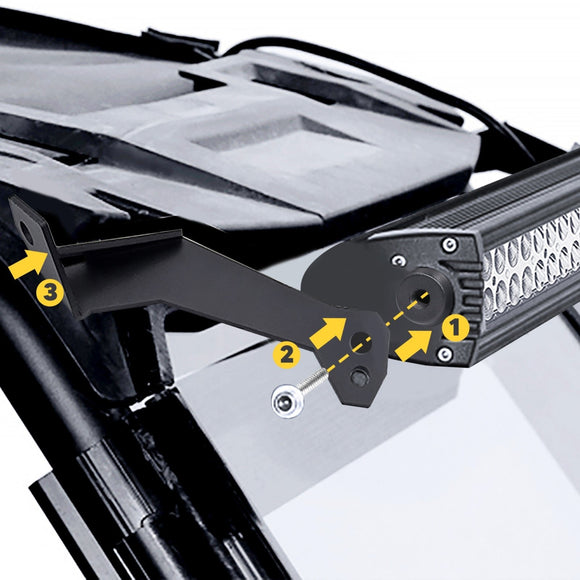

- >>【INSTALLATION】Easy bolt on application. Need Drilling to install.
- >>【NOTE】Only the bracket, Light Bar & Wiring Harness are options.

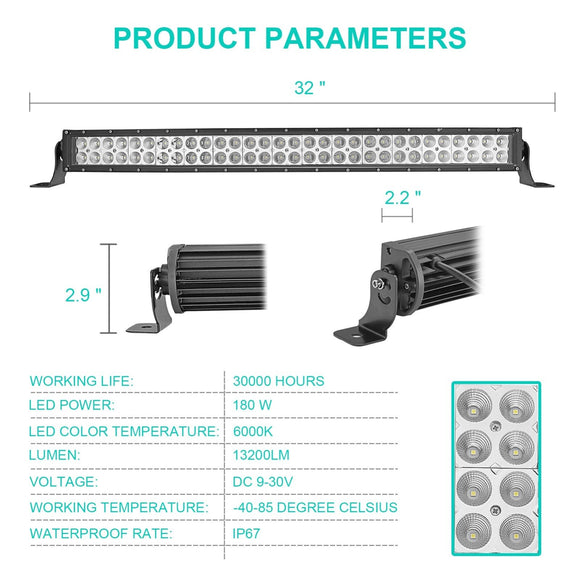

Specification of 32" Curved LED Light Bar:
- >>LED power: 180 W (60pcs 3W high intensity LEDS)
- >>Working Voltage: DC 9-30V(fit 12V/24V vehicle)

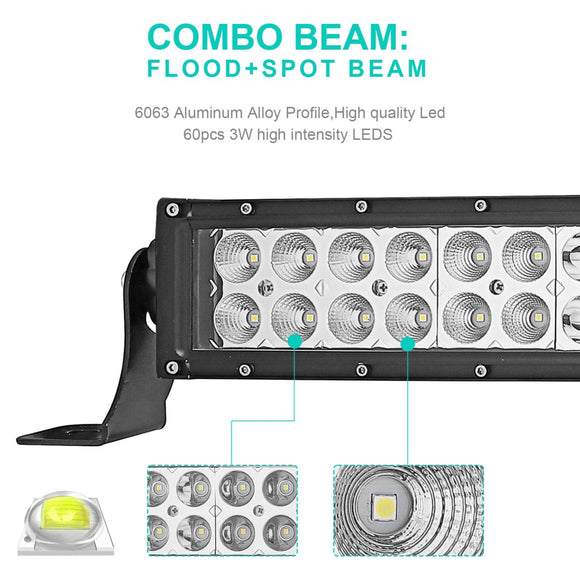

- >>Beam type: Spot beam &Flood Beam Combo
- >>LED color temperature: 6000K
- >>Lumen:13200LM
- >>Working life: 30000 hours
- >>Working temperature: -40-85 degree Celsius
- >>Waterproof rate: IP67

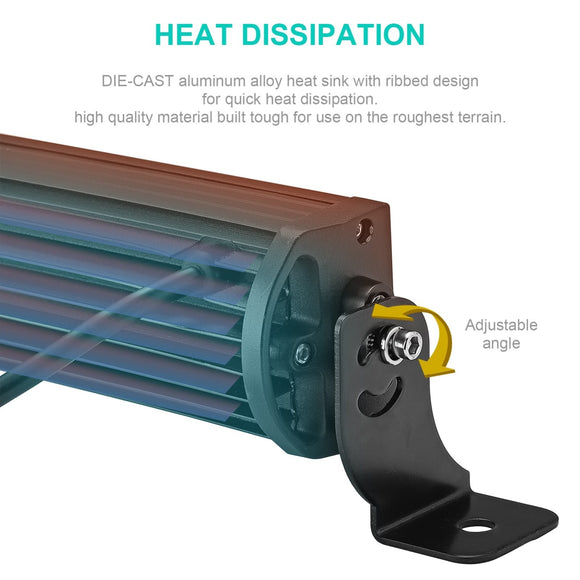

- >>Material: 6063 Aluminum Alloy Profile,High quality Led Chips,high transmission PC Lens
- >>Product Dimension: 32*2.2*2.9in

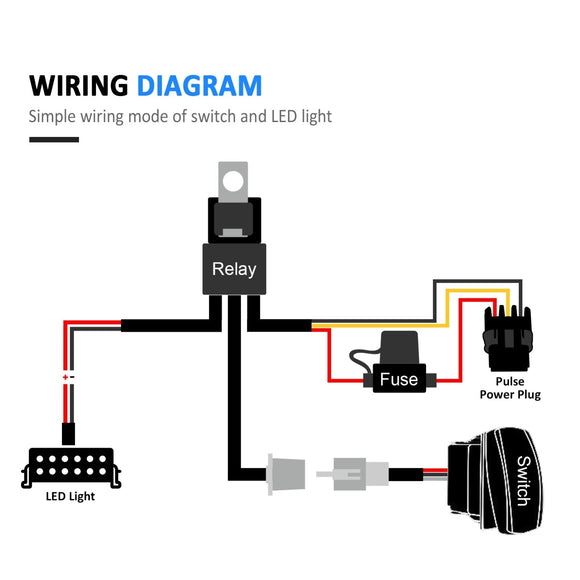

Descriptions of Plug & Play Wiring Harness:
- >>【Frunction】Provides an easier and quicker way to connect the light bar to the battery.

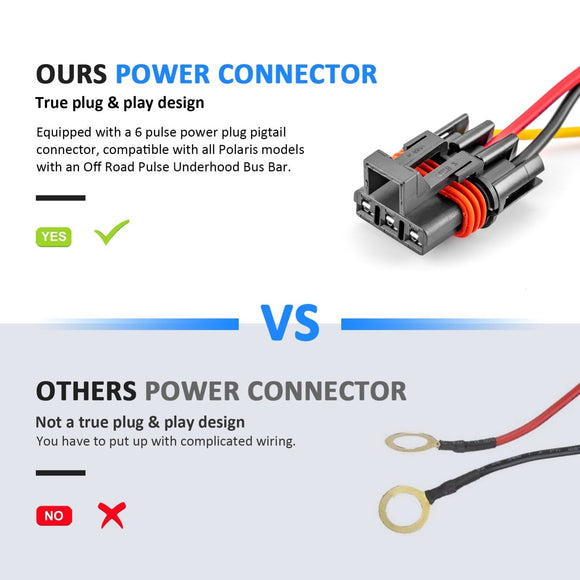

- >>【Feature】Unlike most harnesses on the market, our harnesses are specially equipped with Pulse Power Bar Plug Connectors to make wiring easier.
- >>【Upgrade Design】When you turn off the engine, the switch light will also turn off, and will not keep depleting your battery.

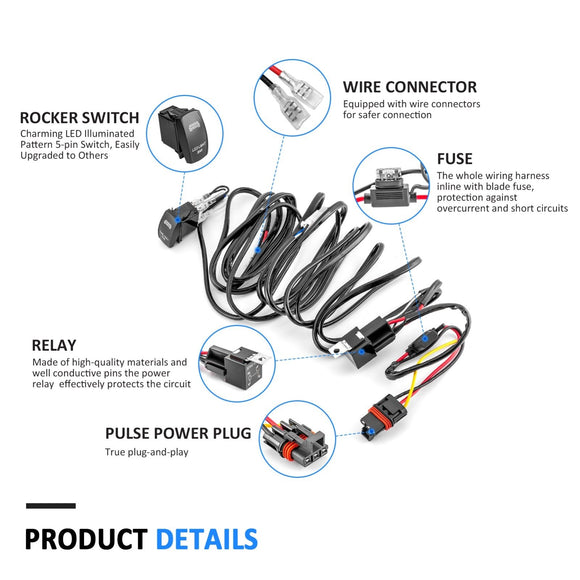

- >>【Sold As A Whole Set】Includes 5 pins ON/OFF Rocker Switch, 10ft wire, inline blade fuse, and automotive relay, No need to purchase separately, saving you valuable time and money.
- >>【Wide Application】Compatible with all UTV with the pulse bus bar（Part Number: 4016007）.
- >>【Installation】True Plug & Play design, directly plug in the factory pulse bus bar, No need to disassemble your seats.
- >>Type: 1 TO 1.
- >>Wire Gauge: 14 AWG
- >>Operating Voltage: 12V DC.
- >>Load Capacity: Up to 300W.
- >>Length: 10ft.

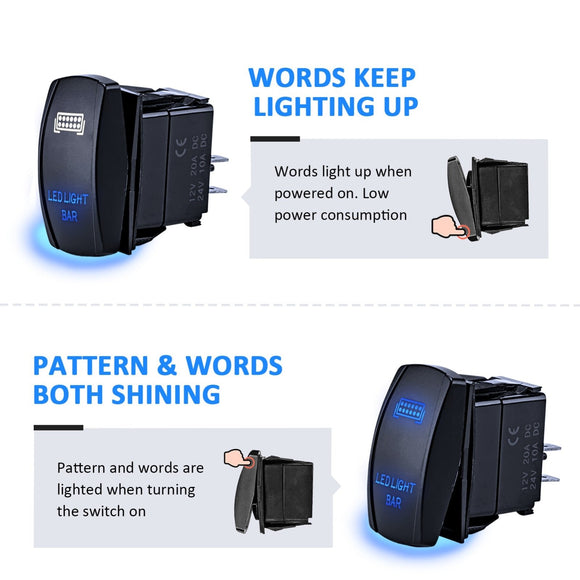

- >>Rocker Switch: 12V 20A and 24V 10A DC.
- >>Relay: DC12V 40A

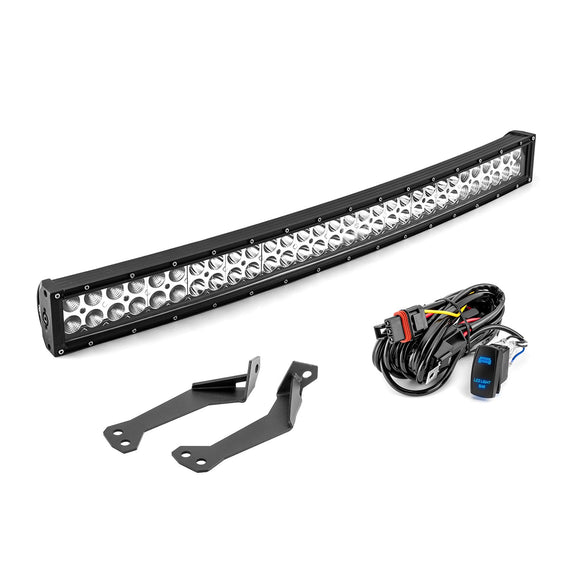

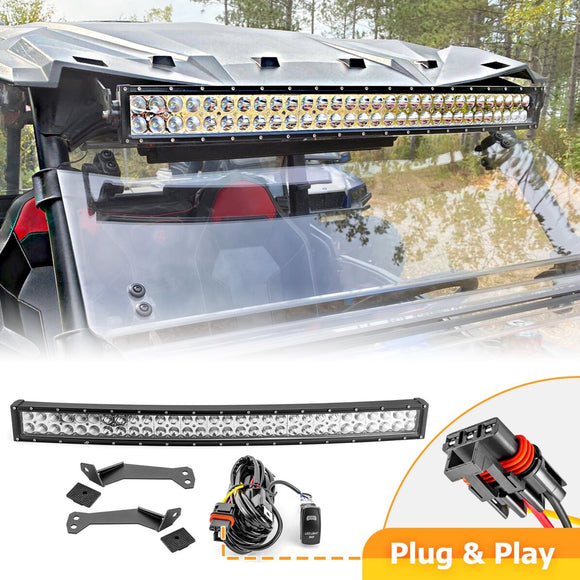

Package Included:
- >>1 Pair LED light bar mounting brackets
- >>1pcs 32" 180W curved LED work light bar
- >>1x one lead wiring harness kit (Plug & Play)
