Fitment:
- Fit Honda Rancher TRX420 - (FA*FE*FM*TE*TM) 2015-2026
- Fit Honda Foreman TRX500 - (FM1E*FE1E*FM2E*FE2E*FM*FPM*FPE) 2014-2019
- Fit Honda Foreman TRX520 (All Models) 2020-2026
- Fit Honda Rubicon TRX500 4x4 (All Models) 2015-2019
- Fit Honda Rubicon TRX520 (All Models) 2020-2026
- Fit Honda Rancher TRX420 (Solid Axle ONLY) - (FA*FE*FM*TE*TM) 2014
Specifications:

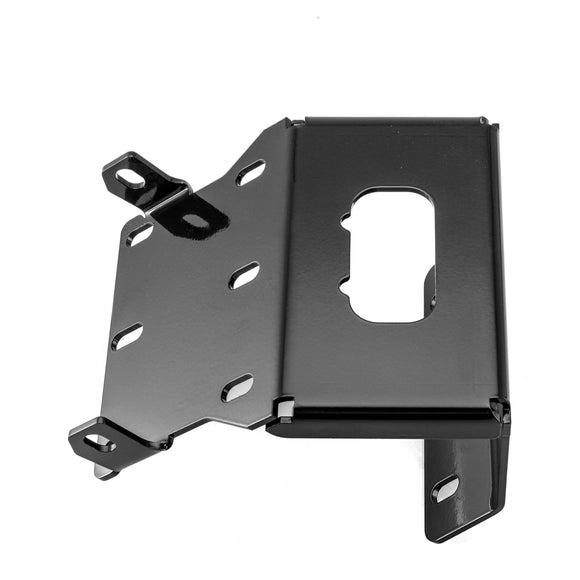

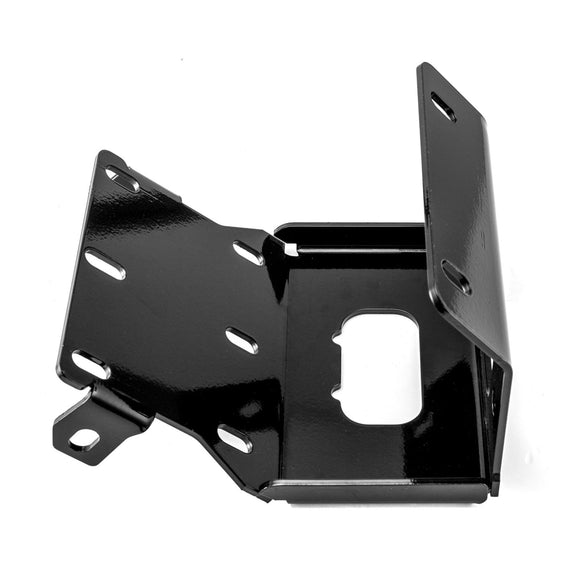

- Item: Winch Mounting Bracket
- Material: Heavy-Duty Steel
- Process: Black Powder Coated

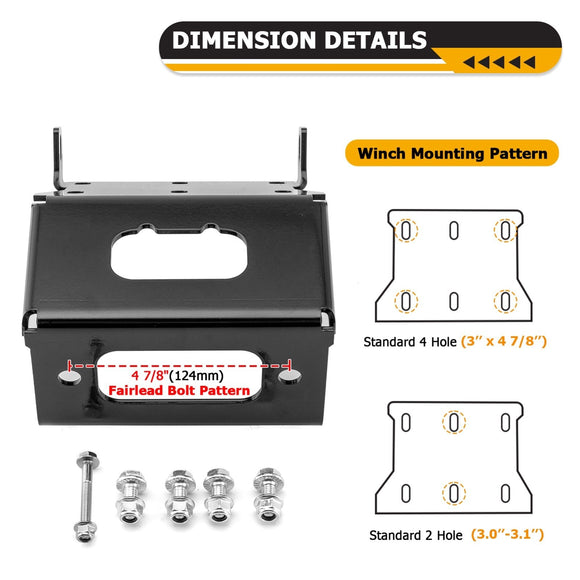

- Winch Mounting Pattern:①Standard 4-Hole 3"x4 7/8" (76mm x 124mm), ②2-Hole 3.10"(78mm )/3"(76mm)
- Fairlead Mounting Pattern: 4 7/8" (124mm)
Features:
【Compatibility】
This Winch Mounting Bracket is compatible with
Fit Honda:
Fit Rancher TRX420 - (FA*FE*FM*TE*TM) 2015-2026
Fit Foreman TRX500 - (FM1E*FE1E*FM2E*FE2E*FM*FPM*FPE) 2014-2019
Fit Foreman TRX520 (All Models) 2020-2026
Fit Rubicon TRX500 4x4 (All Models) 2015-2019
Fit Rubicon TRX520 (All Models) 2020-2026
Fit Rancher TRX420 (Solid Axle ONLY) - (FA*FE*FM*TE*TM) 2014
【Upgrade Off-Road Performance】
Specifically designed to mount a winch to your vehicle, providing mounting holes for installing and securing the winch simply and reliably. This winch mounting bracket is an essential accessory to upgrade your ATV’s off-road function and performance.
【Winch Mounting & Fairlead Pattern】
Compatible with Most U.S. Standard Winches & Fairleads (Please check the size before purchasing). Winch Mounting Pattern:①Standard 4-Hole 3"x4 7/8" (76mm x 124mm), ②2-Hole 3.10"(78mm )/3"(76mm), Fairlead Mounting Pattern: 4 7/8" (124mm)

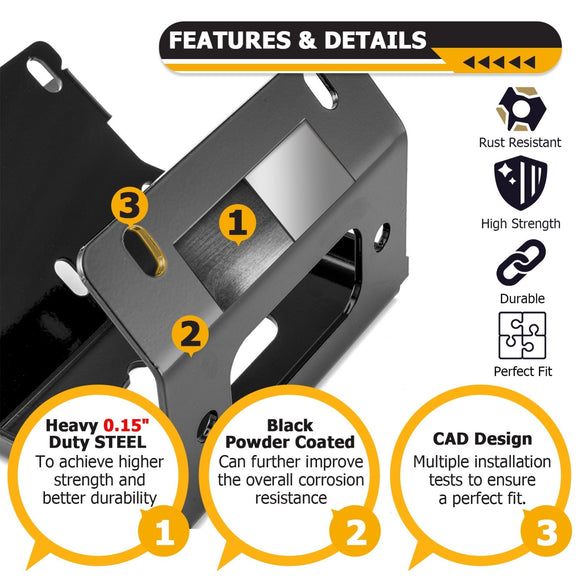

【Premium Construction】
Constructed from high-strength materials and rust-resistant finish, ensuring durability and reliability in any weather condition and heavy use.

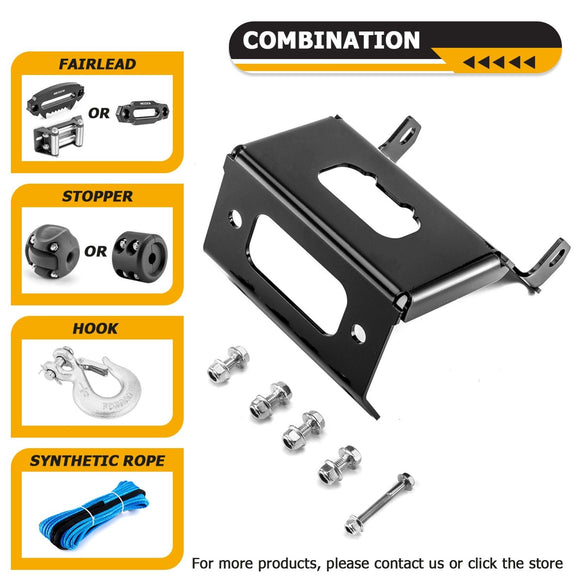

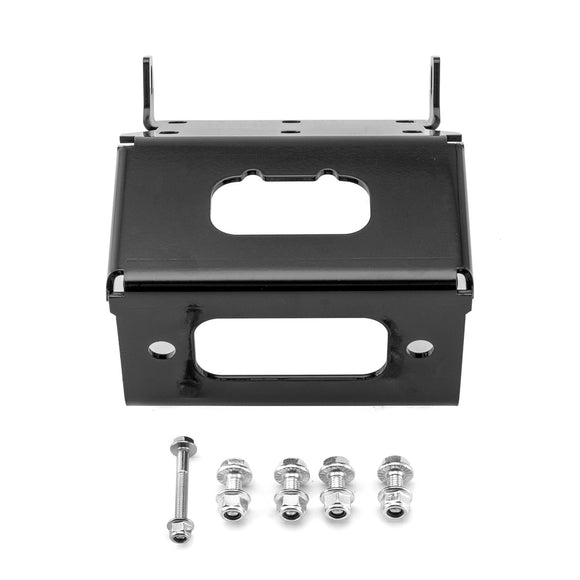

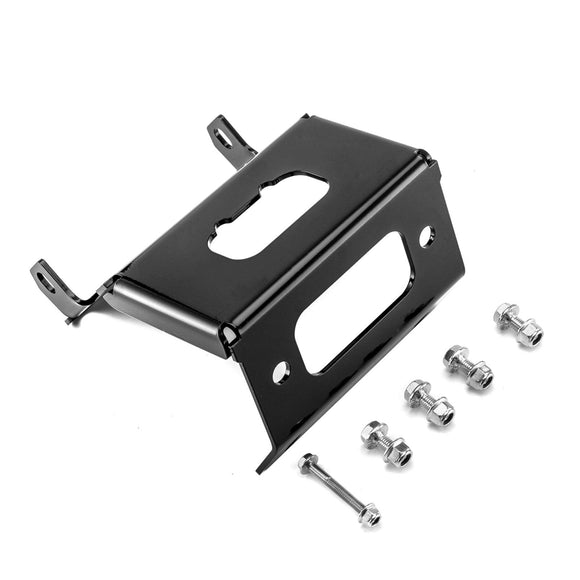

【Package Includes】
1 x Winch Mounting Plate
1 x Installation Instructions
Designed to work with the following winches:
Fit KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
Fit KFI: AM-25 / AM-35 / AS-25 / AS-35
Fit KFI: AS-50 (Requires purchase of ATV-MR)
Fit WARN: VRX 25 / VRX 25-S / VRX35 / VRX 35-S / VRX
Fit WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
Fit WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
Fit WARN: RT40 / XT40
Fit WARN: Vantage 2000-3000lb
Fit WARN: ProVantage 2500-3500lbs
Fit RAMSEY: ATV2500 / ATV3000
Fit SUPERWINCH: Terra25 / Terra35 / Terra 2500 (SR) / Terra 3500 (SR) / A3500 / LT2000 / LT2500 / LT3000 / UT3000 / LT4000ATV / LT4000 (SR)
Fit MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
Fit CYCLE COUNTRY: Work Power 1500
Fit BADLAND: 2-Hole Winches
Fit BADLAND: Standard Winches
Fit CHAMPION: 2-Hole Winches
Fit CHAMPION: Standard Winches
Fit KEEPER CORP. TRAKKER: KT2000
Requires roller fairlead with a 4.875" bolt pattern; available if needed.
Fit SMITTYBILT: XRC 2.0
Requires roller fairlead with a 4.875" bolt pattern; available if needed.
Listed models come with incorrect ATV roller fairleads.
Fit SMITTYBILT: XRC 3.0 / XRC 4.0
Fit VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
All with 3.00" x 4.875" bolt pattern mount-up
Fit Traveller: 1078088 / 1078302
Requires roller fairlead with a 4.875" bolt pattern; available if needed.
Possibly many others with the below standard mounting patterns, call to confirm.
4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
2-Hole (3.10" with rollers that are 4.875" bolt pattern)
