Fitment List:
- Fit Mule PRO-FXT/FX 820 2015-2023，2025**
Fit Mule PRO-FXR 820 2018-2023**
Fit Mule PRO-FXT/FX 1000 2024-2026 **
Fit Mule PRO-FXR 1000 2024-2026 **
Fit Mule PRO-DXT/DX Diesel 1000 2016-2026 **
** = Requires the purchase of wire extension kit Due to location of battery
Specifications:

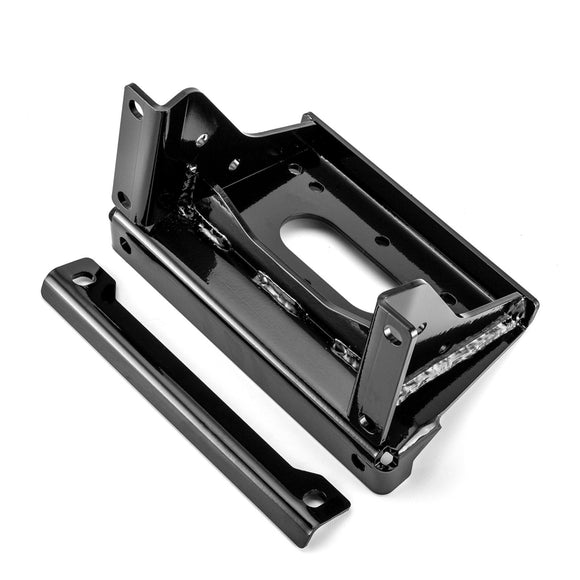

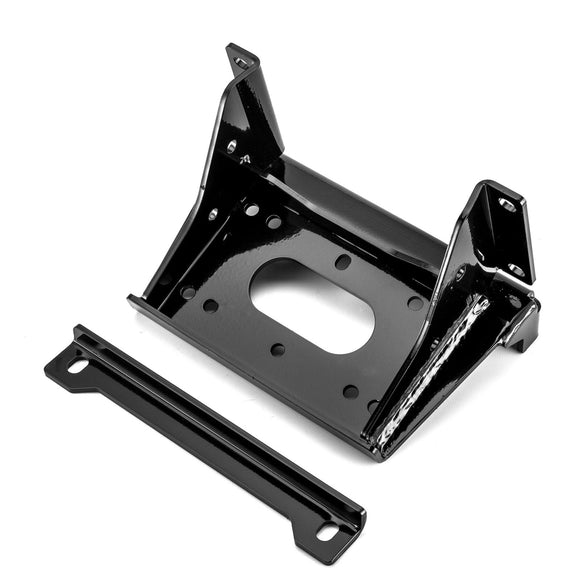

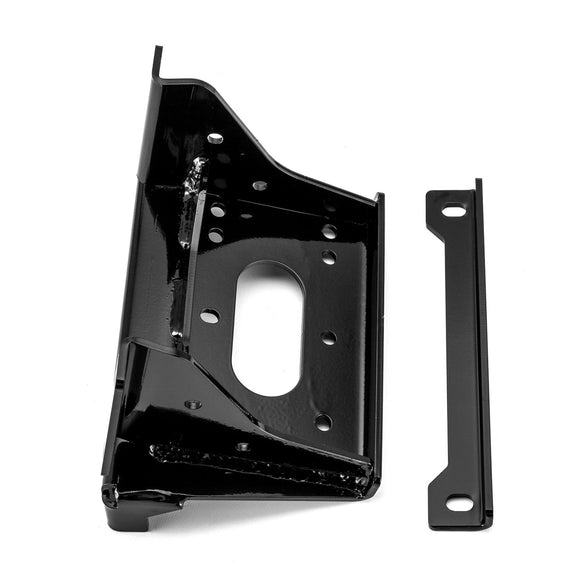

- Item: Winch Mounting Bracket
- Material: Heavy-Duty Steel
- Process: Black Powder Coated

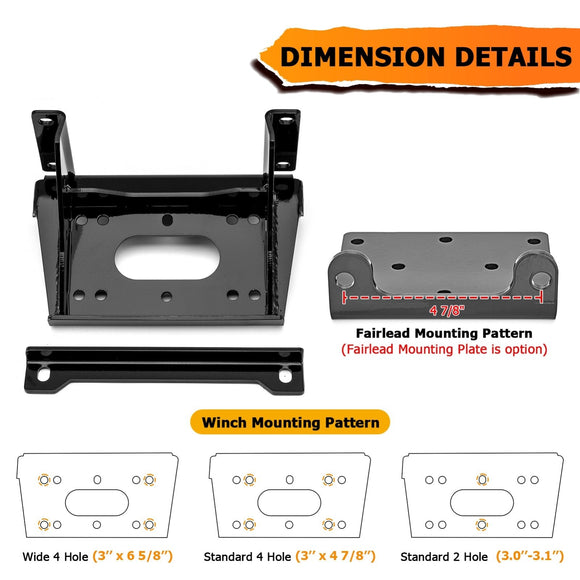

- Winch Mounting Pattern: ①Standard 4-Hole 3"x4 7/8" (76mm x 124mm), ②Wide 4 Hole 3"x 6 5/8" (76mm x 169mm), ③2-Hole 3.10"(78mm )/3"(76mm)
- Fairlead Mounting Pattern: 4 7/8" (124mm)
Features:
√【Winch Mounting Bracket】
An Ideal Mount To Hold The Winches, which Provides mounting holes for installing and securing the winch simply and reliably.
Fits Mule PRO-FXT/FX 820 2015-2023，2025, fits Mule PRO-FXR 820 2018-2023, fits Mule PRO-FXT/FX 1000 2024-2026, fits Mule PRO-FXR 1000 2024-2026, fits Mule PRO-DXT/DX Diesel 1000 2016-2026.
Note：Requires the purchase of wire extension kit Due to location of battery

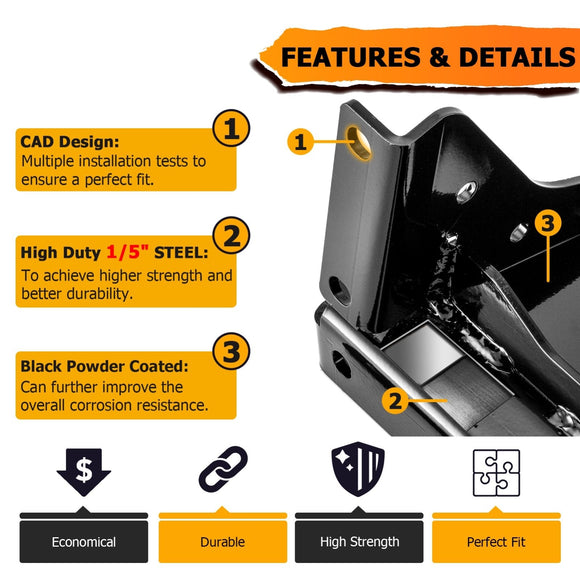

√【Powerful Durability & Strength】
The Heavy-Duty Steel material makes it high strength, and it could be more durable. Black Powder Coated Surface surface technology makes it more resistant to rust, which is more durable.
√【Precise Fitment & Mounting Pattern】
Through Computer-aided design and Multiple Fitment Tests to ensure the precise fit. Compatible with Most U.S. Standard Winches & Fairleads (Please check the size before purchasing)
Winch Mounting Pattern:①Standard 4-Hole 3"x4 7/8" (76mm x 124mm), ②Wide 4 Hole 3"x 6 5/8" (76mm x 169mm), ③2-Hole 3.10"(78mm )/3"(76mm)
Fairlead Mounting Pattern: 4 7/8" (124mm)
√【Easy Installation & Reliable Service】
With its simple bolt-on design, using conventional tools, no drilling or modification is required.
The Powerful Support Team could reply to you and provide you with a full range of satisfactory services and solve your problem.

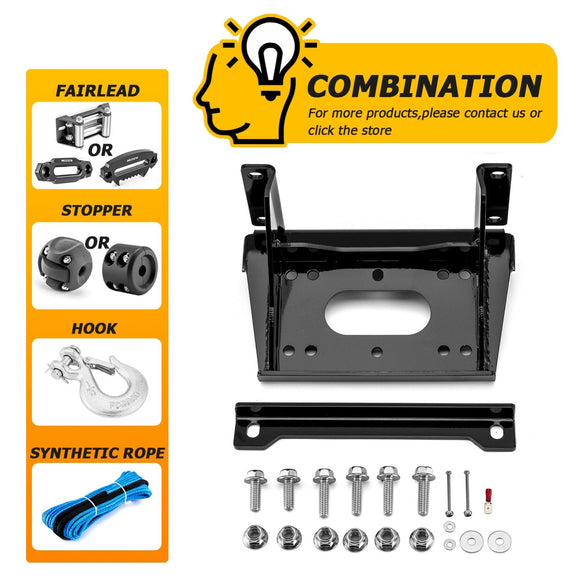

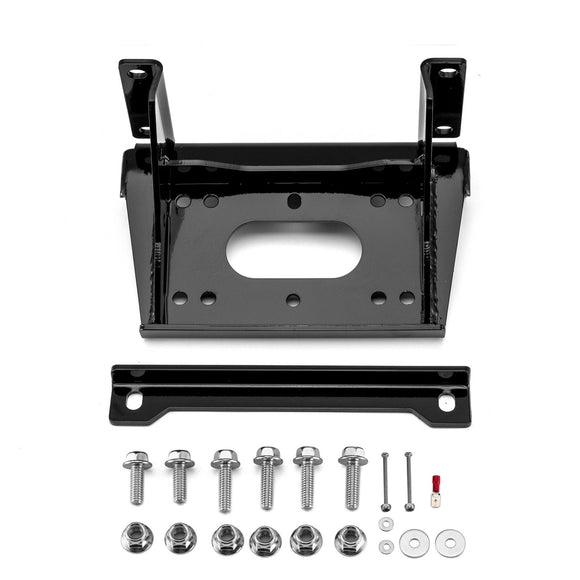

√【Package List】
1 x Winch Mounting Bracket
1 X Support Bracket
1 x Installation Instructions
Designed to work with the following winches:
Fit KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
Fit KFI: AM-25 / AM-35 / AS-25 / AS-35
Fit KFI: AS-50 / AS-50w
Fit WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
Requires Standard fairlead bracket;available if needed.
Fit WARN: VRX 45 / VRX 45-S
Requires Wide fairlead bracket;available if needed.
Fit WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
Fit WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
Fit WARN: RT40 / XT40
Fit WARN: Vantage 2000-4000lb
Fit WARN: ProVantage 2500-4500lbs
Fit RAMSEY: ATV2500 / ATV3000
Fit SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
Fit MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
Fit CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
Fit BADLAND 2-Hole Winches: 68146 / 61258 / 61297 / 61840
Fit BADLAND Standard Winches: 68145 / 61604 / 61257 / 61383
Fit BADLAND WIDE Winches: 61384 / 68144 / 61605
Fit CHAMPION 2-Hole Winches: 10028 / 10032 / 12001 / 12002 / 12003 / 12004 / 13001 / 13005 / 100127 / C20049 / C20051 / C20249 / C30045 / C30145
Fit CHAMPION Standard Winches: 10013 / 10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 13502 / 14001 / 14051 / 14061 / 14560 / 100129 / 100218 / 100243 / 100335
Fit CHAMPION WIDE Winches: 14008 / 14501 / 14551 / 14552 / 40252
Fit KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
Fit KEEPER CORP. TRAKKER: KT2000
Requires roller fairlead with a 4.875" bolt pattern; available if needed.
Fit SMITTYBILT: XRC 2.0
Requires roller fairlead with a 4.875" bolt pattern; available if needed.
Listed models come with incorrect ATV roller fairleads.
Fit SMITTYBILT: XRC 3.0 / XRC 4.0
Fit XGEAR: X3000 / X4000
4-Hole Standard (3.00" x 4.875" bolt pattern)
Fit VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
All with 3.00" x 4.875" bolt pattern mount-up
All with 3.00" x 6.600" bolt pattern mount-up
Fit Traveller: 1078311
Fit Traveller: 1078088 / 1078302
Requires roller fairlead with a 4.875" bolt pattern; available if needed
Possibly many others with the below standard mounting patterns, call to confirm.
4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
2-Hole (3.10" with rollers that are 4.875" bolt pattern)
Fit QUADBOSS: RP25 / RP35
