Fitment:
- >>2016-2024 Yamaha Grizzly 700
- >>2016-2024 Yamaha Kodiak 700

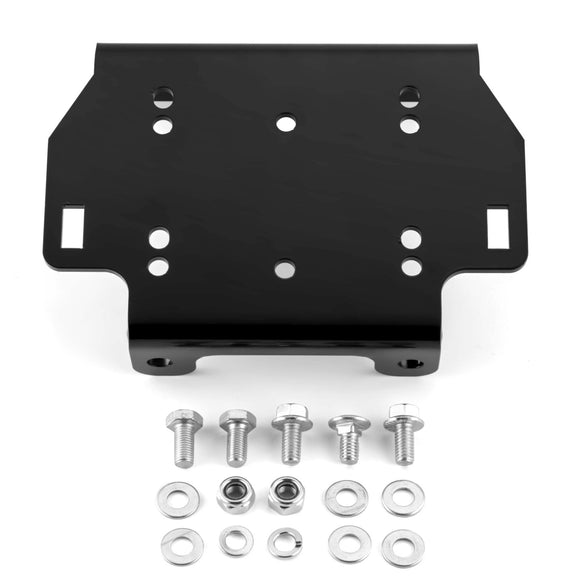

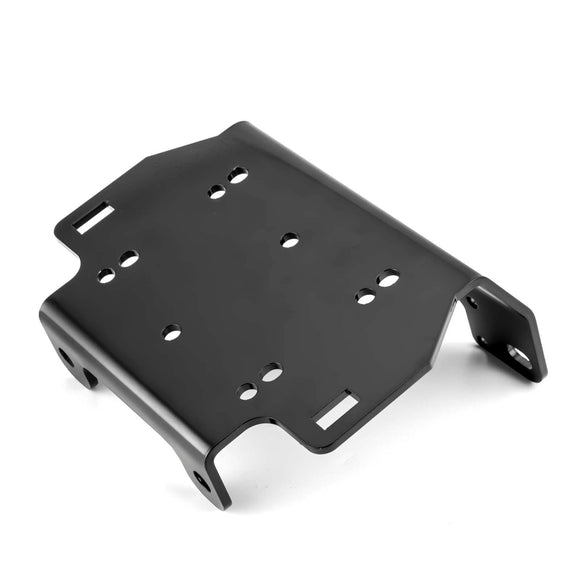

Specifications of winch mount bracket:
- >>【FUNCTION】Provides a simple and reliable way to secure your winch.
- >>【WIDE APPLICATION】Can work with most US Standard winches and fairleads.

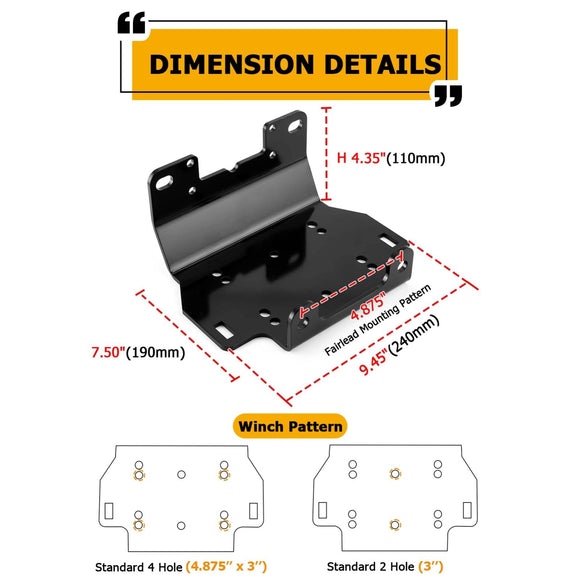

- Winch Mounting Pattern： Standard 4-hole (3.00" x 4.875") or 2-hole (3.00").
- Fairlead Mounting Pattern：4 7/8"(124mm).

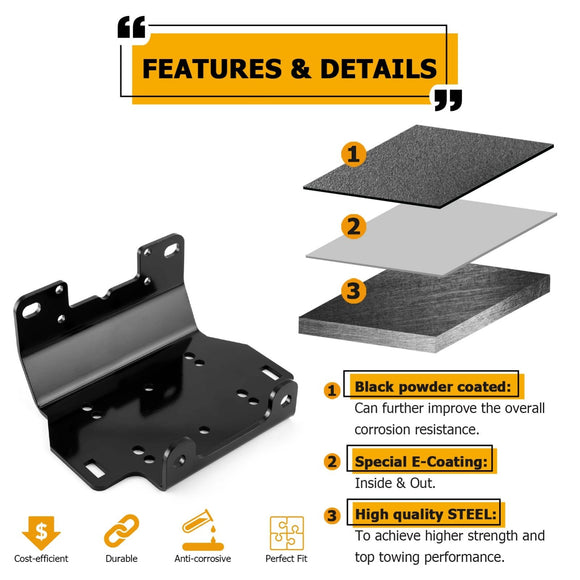

- >>【MATERIAL】Made of Premium Solid Steel to achieve better durability and higher strength.
- >>【PROCESS】Black powder coated: can further improve the overall corrosion resistance, prolong the service life, and maintain an attractive appearance in the next few years.
- >>【PRECISION】Computer-aided design and laser-cut to ensure the perfect fit.
- >>【INSTALLATION】Easy Bolt-on installation and takes about 45 minutes.（No drilling or modification required）

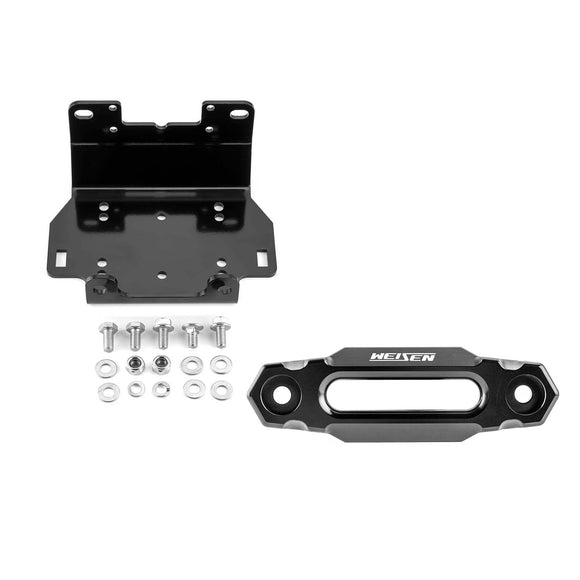

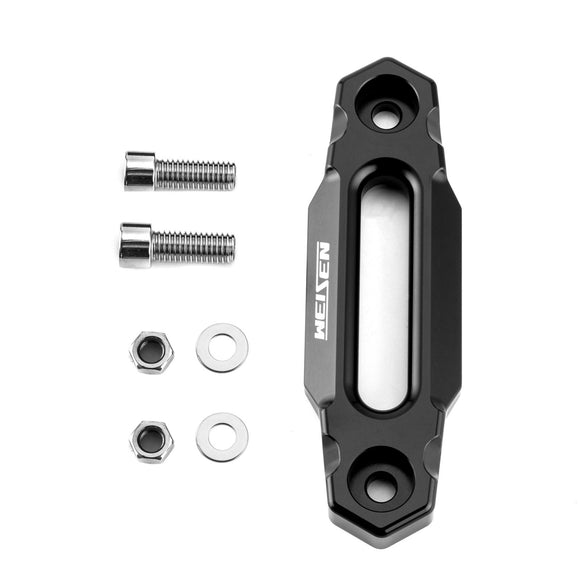

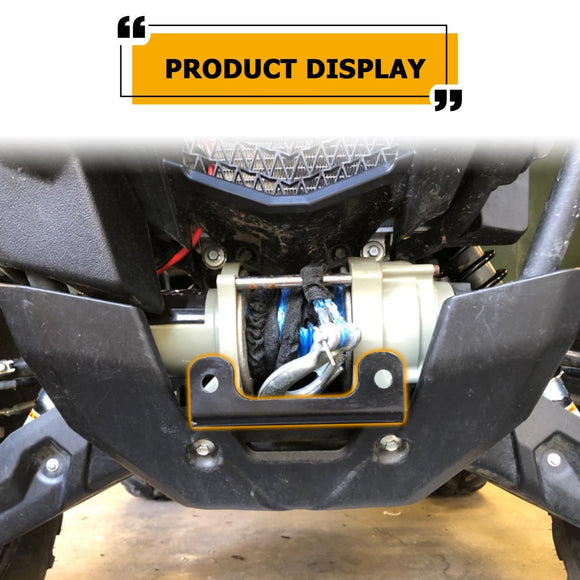

Specifications of Winch Fairlead:
- >>【FUNCTION】Protect and reduce wear on the rope and at the same time protect the winch from unneccessary damage.
- >>【MOUNTING PATTERN】4 7/8"INCH (124 MM).
- >>【EXCELLENT PERFORMANCE】Load Capacity: 2000-3500lbs.
- >>【MATERIAL】Made of quality CNC 6061 Aluminum to achieve better durability and higher hardness.
- >>【PROCESS】Black anodized: can further improve the overall corrosion resistance, prolong the service life, and maintain an attractive appearance in the next few years.
- >>【PRECISION】Computer-aided design and laser-cut to ensure the perfect fit.
- >>【INSTALLATION】Easy Bolt-On Installation and takes only takes a few minutes.（No drilling or modification required）
- >>【NOTE】Suitable for synthetic rope, not for steel cable.
Designed to work with the following winches:
- KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
- KFI: AM-25 / AM-35 / AS-25 / AS-35
- KFI: AS-50 (Requires purchase of ATV-MR)
- WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
- WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
- RAMSEY : ATV2500 / ATV3000
- SUPERWINCH : Terra25 / Terra35 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
- MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- MASTER LOCK :1500lbs #2955AT
- Requires roller fairlead with a 4.875" bolt pattern;
- CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500, 3500
- BADLAND: 2-Hole Winches
- BADLAND: Standard Winches
- CHAMPION : 2-Hole Winches
- CHAMPION : Standard Winches
- KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C
- KEEPER CORP. TRAKKER :KT2000
- Requires roller fairlead with a 4.875" bolt pattern;
- SMITTYBILT :XRC 2.0
- Requires roller fairlead with a 4.875" bolt pattern;
- Listed models come with incorrect ATV roller fairleads.
- SMITTYBILT :XRC 3.0
- XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern
- VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Standard ONLY)
- 4-Hole Standard 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern
- QUADBOSS: RP25 / RP35
- Traveller:1078088 / 1078302
- Requires roller fairlead with a 4.875" bolt pattern;
- Possibly many others with the below standard mounting patterns, call to confirm.
- 4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
Package Includes:
- depending on the item you choose
- >>1 x Installation Instruction
