Fitment List:
- 2020-2024 Kawasaki Teryx KRX 1000
- 2023-2024 Kawasaki Teryx KRX 4 1000

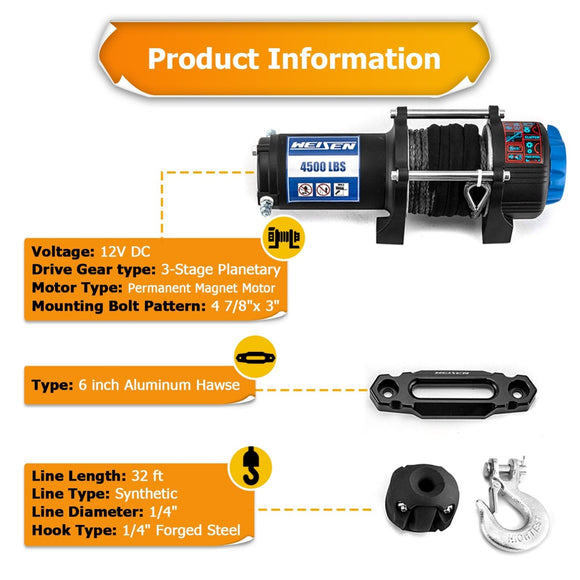

Specifications:
- Winch Type: Electric
- Voltage: 12 Volt DC
- Motor Type: Permanent Magnet Motor
- Drive Gear Type: 3-stage Planetary
- Gear Reduction Ratio 180:1
- Line Type: Synthetic
- Line Diameter (in): 1/4 inch
- Line Length (ft): 32 ft
- Hook Type: 1/4 Inch Forged Steel
- Line Stopper Type: Maximum Diameter 1/2 inch Quality Rubber Line Stopper
- Fairlead Type: 6.0 inch Aluminum Hawse
- Remote Type: Corded Remote With Rocker Switch + Wireless Remote Control
- With 100ft Control Range
- Winch Mounting Bolt Pattern(in): 4 7/8 inch x 3 inch
- Max Line Pull/ Line Speed: 4500 pound/1.5 feet per minute
- Max Amp Draw/ Line Pull: 170 amps / 4500 lbs
Features:
【Fitment】
This Electric Winch Kit fits 2020-2024 Kawasaki Teryx KRX 1000, 2023-2024 Kawasaki Teryx KRX 4 1000. (Please check fitment before your purchase)

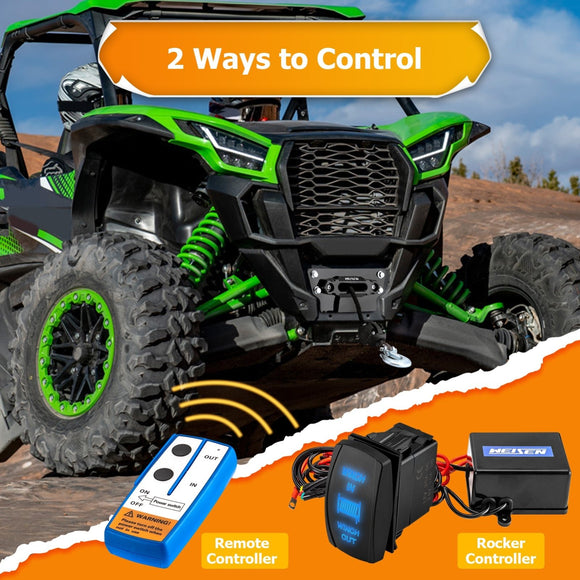

【Wired/Wireless Control】
The Winch with Winch Mounting Plate Includes Rocker and Remote Switch for Wired/Wireless Control.
You can mount the rocker controller directly to the original holes in the dashboard without cutting or drilling, giving the dashboard a neat look. Or use the remote switch for wireless control. (Remote control range up to 100 feet), and you don't have to touch the dangerous rope directly, making it safer and more convenient for everyday use.
【4500 lbs Line Pull】
Equipped with a 3-stage Planetary Drive Gear system and 180:1 gear speed ratio that delivers reliable pulling power with a weight capacity of up to 4500 lbs. it excels in towing tasks such as pulling heavy loads, relieving stuck vehicles, and navigating challenging terrains.
【High Quality】
Made of 1/4" 32FT Synthetic Line, compared to steel cables, it can withstand more traction, is lighter and safer, won't rust, won't burr, and is easy to use.
The 6.0" Hawse Fairlead is a heavy-duty 6061 aluminum material + a corrosion resistant anodized black process, It can withstand harsh weather conditions and rough terrain and keep working normally.

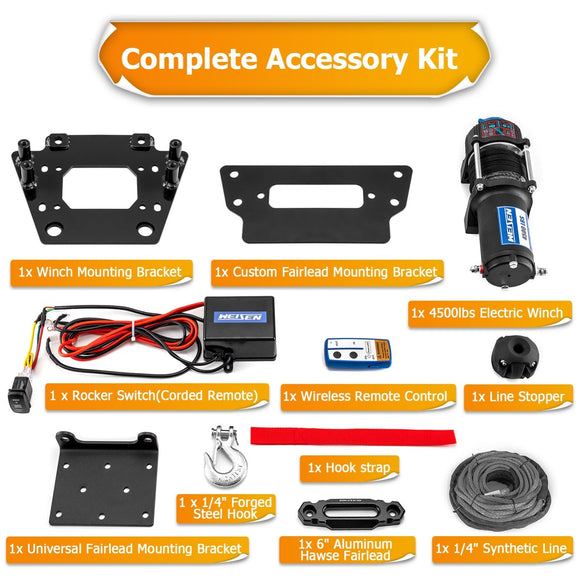

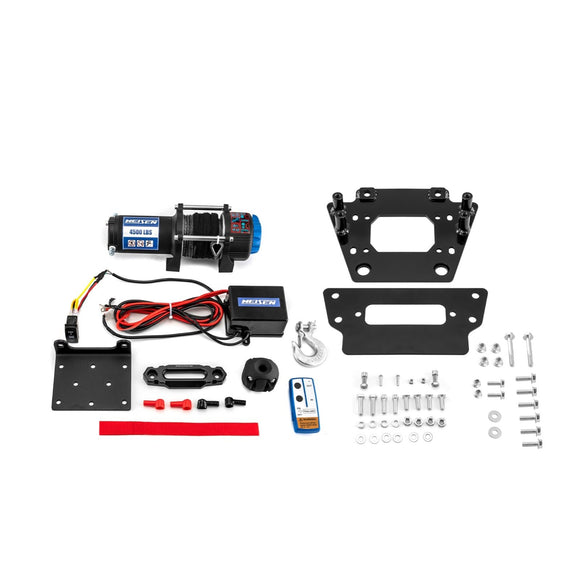

【Sold As Whole Set】
Package includes all needed parts:
1 x 4500lbs Electric Winch
1 x Winch Mounting Bracket
1 x Custom Fairlead Mounting Bracket
1 x Universal Fairlead Mounting Bracket
1 x 6.0" Aluminum Hawse Fairlead
1 x 1/4" Synthetic Line
1 x 1/4" Forged Steel Hook
1 x Line Stopper
1 x Rocker Switch(Corded Remote)
1 x Wireless Remote Control
1 x Installation Instructions
