Fitment List
- Fit Polaris RZR Pro XP / Pro XP 4 (2020-Current)
- Fit Polaris RZR Turbo R / Turbo R 4 (2022-2024)
- Fit Polaris RZR Pro S / Pro S 4 (2025-Current)
-
Note: Not fit RZR Pro R
Specifications of Mount Bracket:
- Product Name: UTV Roof Light Bar Mount
- Light Bar Fitment: 30" Straight or Curved Light Bars
- Material: Heavy-Duty Steel
- Finish: Black Powder Coating (Scratch & Corrosion Resistant)
- Installation: Bolt-On (No Drilling or Modifications)
Features of Mount Bracket:
【Precision Fit & Note】
Compatible with Polaris RZR Pro XP / Pro XP 4 (2020-Current), Turbo R / Turbo R 4 (2022-2024), and Pro S / Pro S 4 (2025-Current). **Note: Excludes RZR Pro R models.**
【Upgrade Your UTV Lighting System】

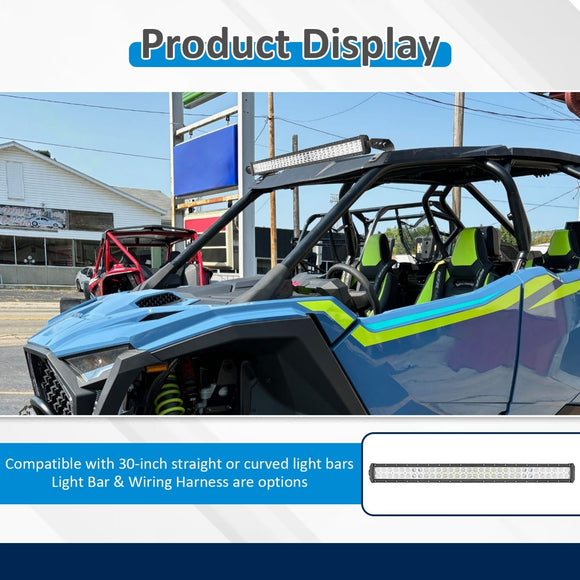

Provides secure mounting points on your UTV's roof for installing a standard aftermarket 30-inch straight or curved off-road light bar, enhancing visibility for safer night rides.

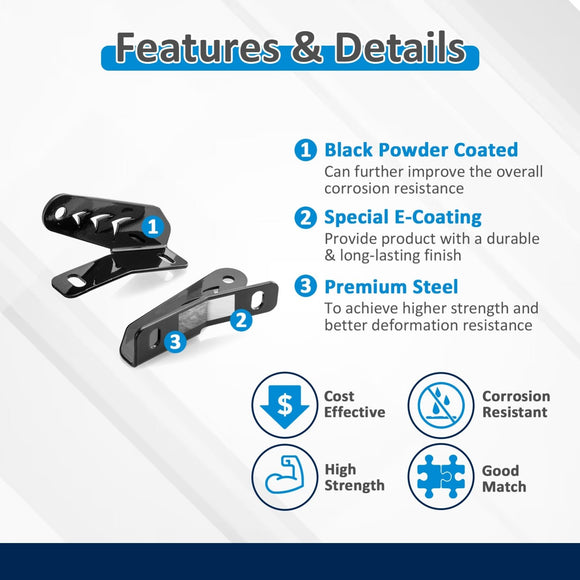

【Heavy-Duty Steel Construction】
Manufactured from robust steel material offering high strength and resistance to deformation. Features a black powder-coated finish for corrosion resistance and durability in demanding off-road conditions.

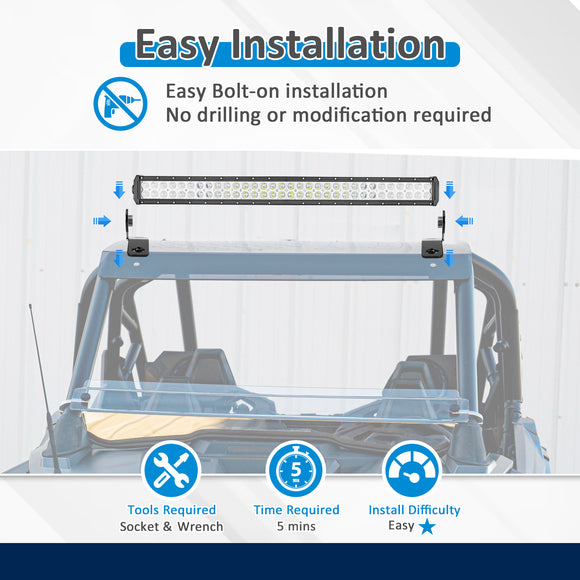

【Effortless Bolt-On Installation】
Utilizes existing factory holes on your RZR's roll cage for mounting. Requires no drilling or modifications – a straightforward installation process.
【Complete Mounting Kit Included】

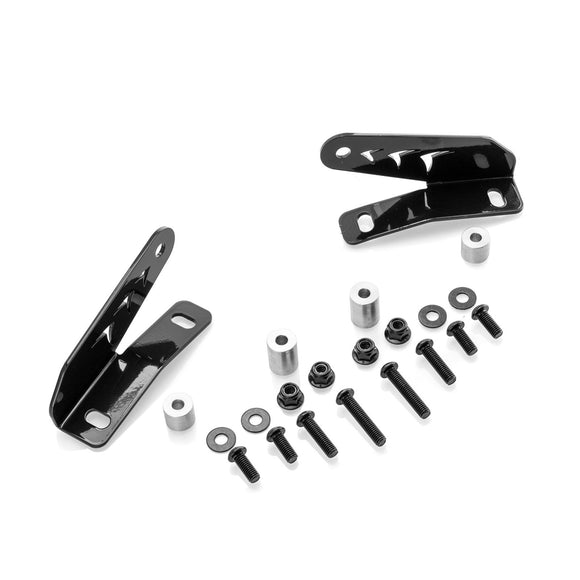

Includes (1) Driver Side Bracket, (1) Passenger Side Bracket, (2) Long Spacers, (2) Short Spacers, and (1) Installation Guide for everything needed.
Specification of LED Light Bar:

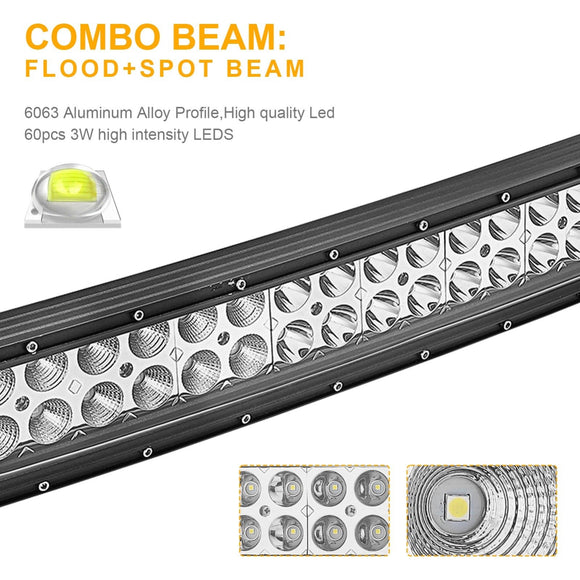

- Item: 32" Curved LED Light Bar
- LED power: 180 W (60pcs 3W high-intensity LEDS)
- Working Voltage: DC 9-30V (fit 12V/24V vehicle)
- Beam type: Spot Beam & Flood Beam Combo
- LED Color Temperature: 6000K
- Lumen: 13200LM
- Working Life: 30000 Hours
- Working Temperature: -40-85 Degree Celsius

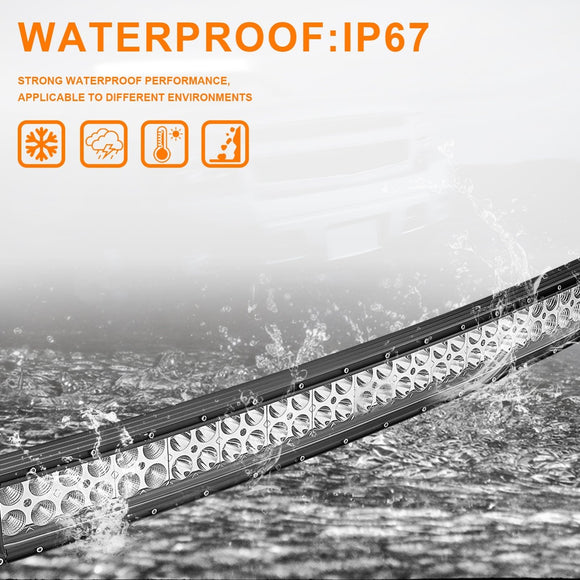

- Waterproof Rate: IP67

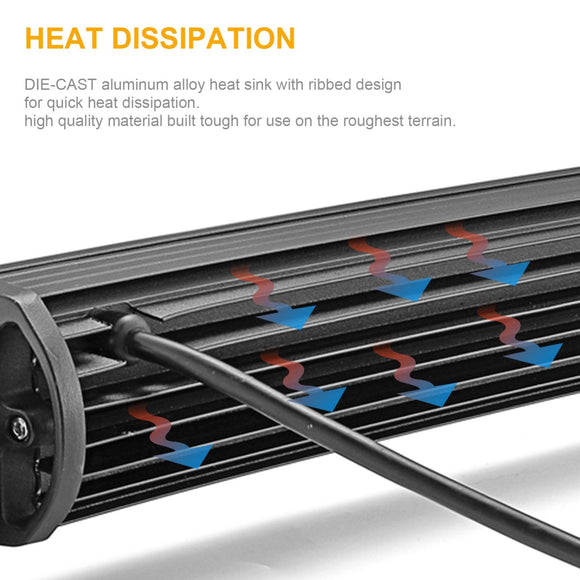

- Material: 6063 Aluminum Alloy Profile, High-Quality Led Chips, High Transmission PC Lens
- Product Dimension: 32*2.2*2.9 Inch

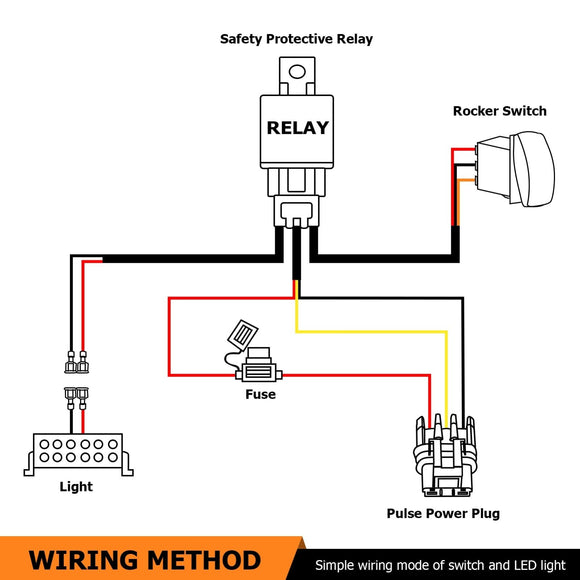

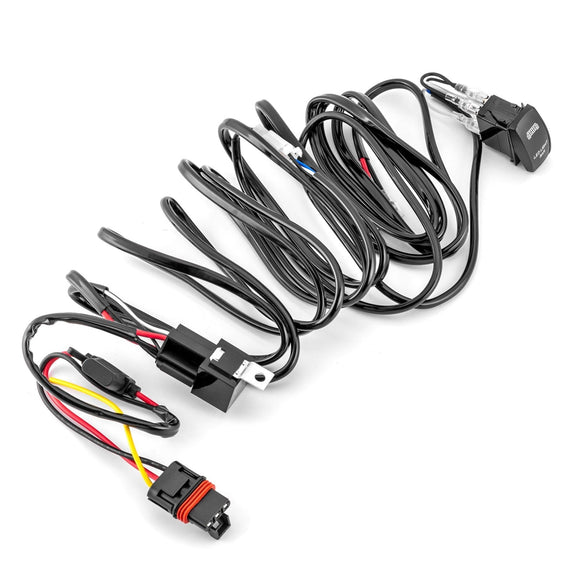

Descriptions of Wiring:
【Frunction】Provides an easier and quicker way to connect the light bar to the battery.

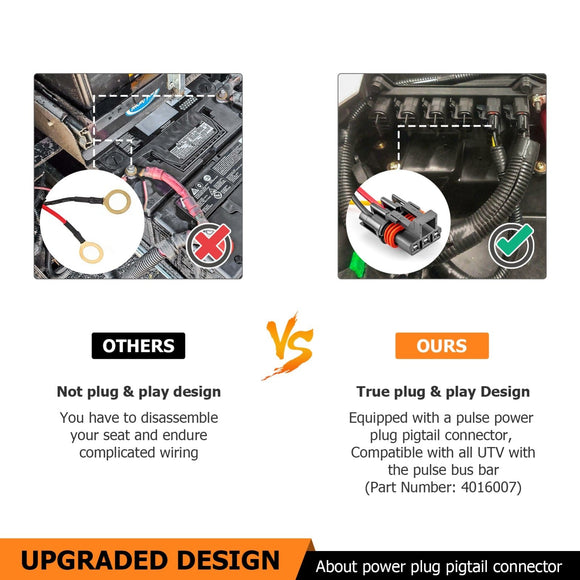

【Feature】Unlike most harnesses on the market, our harnesses are specially equipped with Pulse Power Bar Plug Connectors to make wiring easier.

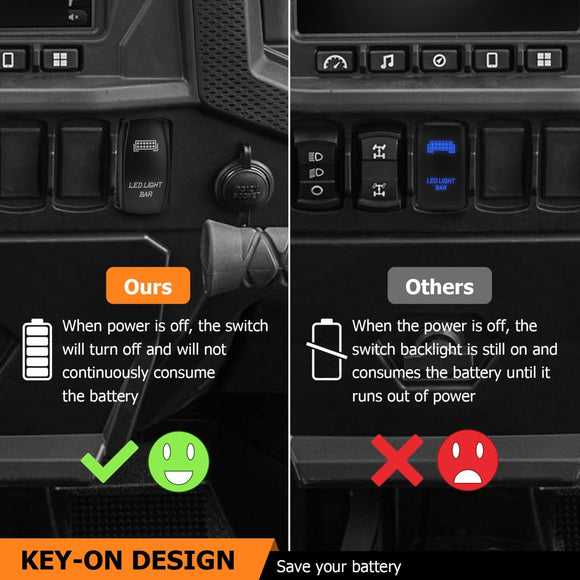

【Upgrade Design】When you turn off the engine, the switch light will also turn off, and will not keep depleting your battery.

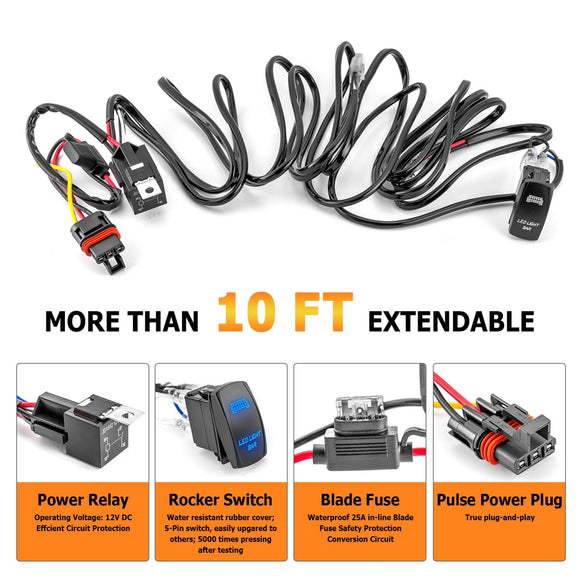

【Sold As A Whole Set】Includes 5 pins ON/OFF Rocker Switch, 10ft wire, inline blade fuse, and automotive relay, No need to purchase separately, saving you valuable time and money.
【Wide Application】Compatible with all UTV with the pulse bus bar (Part Number: 4016007).
【Installation】True Plug & Play design, directly plug in the factory pulse bus bar, No need to disassemble your seats.
Specification of Wiring:
- Type: 1 TO 1.
- Wire Gauge: 14 AWG
- Operating Voltage: 12V DC.
- Load Capacity: Up to 300W.
- Length: 10ft.

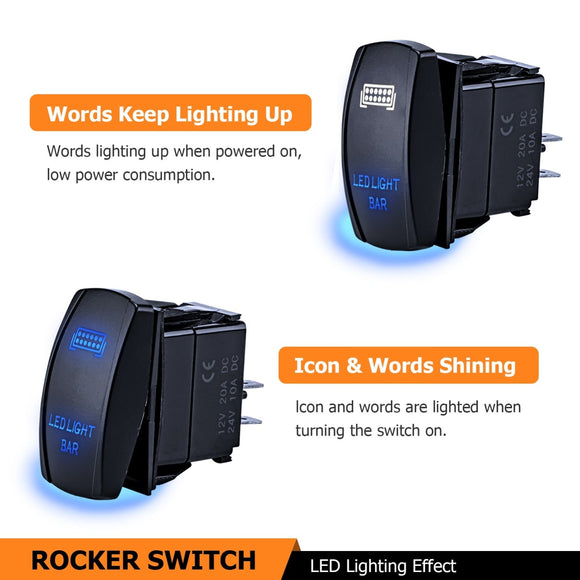

- Rocker Switch: 12V 20A and 24V 10A DC.
- Relay: DC12V 40A

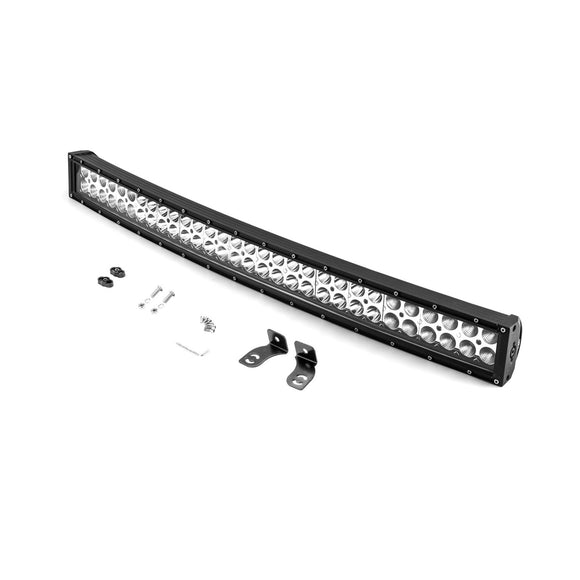

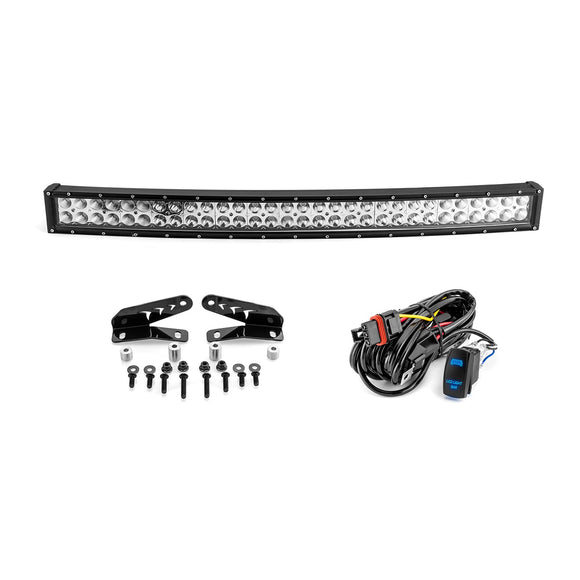

Package Includes:
- 1x Driver Side Light Bracket
- 1x Passenger Side Light Bracket
- 2x Long Spacers
- 2x Short Spacers
- 1x 32" 180W Curved LED Work light bar
- 1x One Lead Wiring Harness Kit
- 1x Installation Guide
