Fitment:
- Fits 2024-2025 Kawasaki Ridge (Base / HVAC / Limited HVAC / Ranch Edition)
- Fits 2024-2025 Kawasaki Ridge XR (Base / HVAC / Deluxe) **see NOTE below**
Specifications:

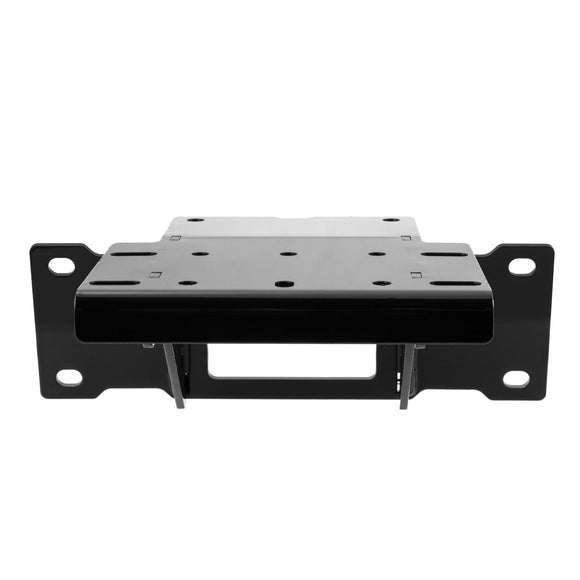

- Product Name: Winch Mount

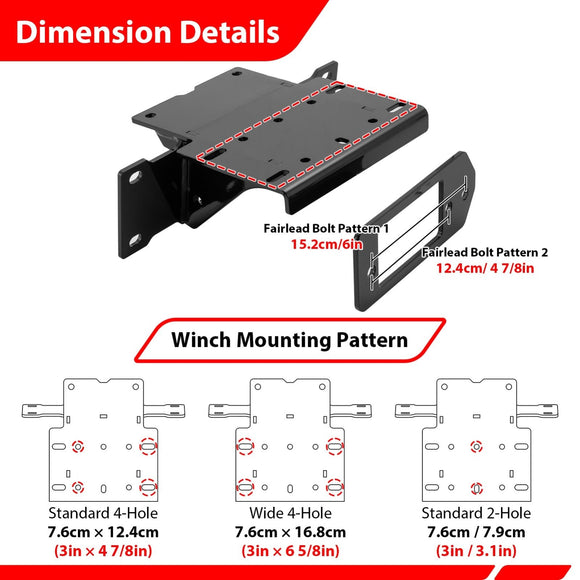

- Winch Bolt Patterns: ①3"x4 7/8"; ②3"x6 5/8"; ③3"/3.1";
- Fairlead Mount Patterns: ①4 7/8"; ②6";
- Material: 3/16" reinforced steel
- Finish: Black Powder Coating (Scratch & Corrosion Resistant)
- Installation: Bolt-on (no drilling/modifications)

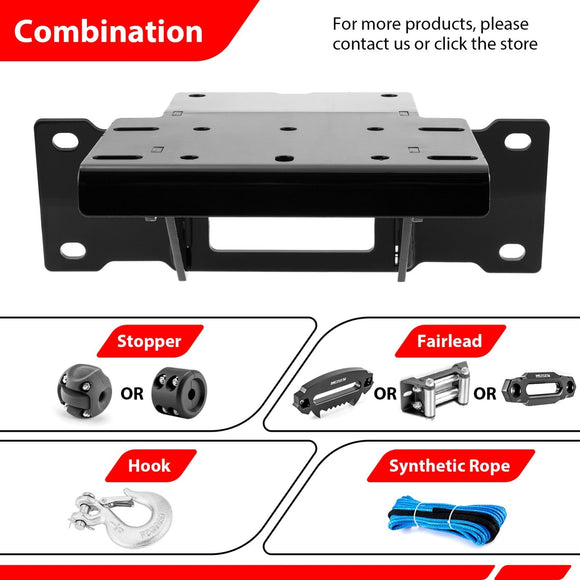

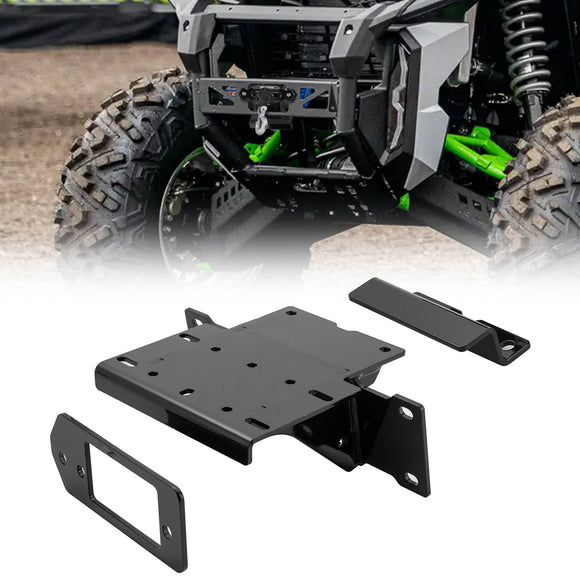

- Included Components: Winch Mounting Plate, Tube Gusset, Standard Fairlead Adapter, Installation Instructions
Features:
【Fit Kawasaki Ridge Models with Precision】
Compatible with Ridge (Base / HVAC / Limited HVAC / Ranch Edition) and Ridge XR (Base / HVAC / Deluxe) 2024-2025. Ensure seamless compatibility and a factory-like finish with this model-specific winch mount.
【Note】If you have an XR model or an aftermarket bumper，it will Not work with certain winches. For details, please refer to the list below.
【Triple Winch Bolt Patterns & Dual Fairlead Options】
Features three winch mounting patterns (①Standard-4-hole: 3"x4 7/8", ②Wide-4-hole: 3"x6 5/8", ③ Standard-2-hole: 3"/3.1") to fit most UTV winches on the market. The integrated fairlead mount supports 4 7/8" and 6" fairleads, offering unmatched versatility for your recovery or utility setups.

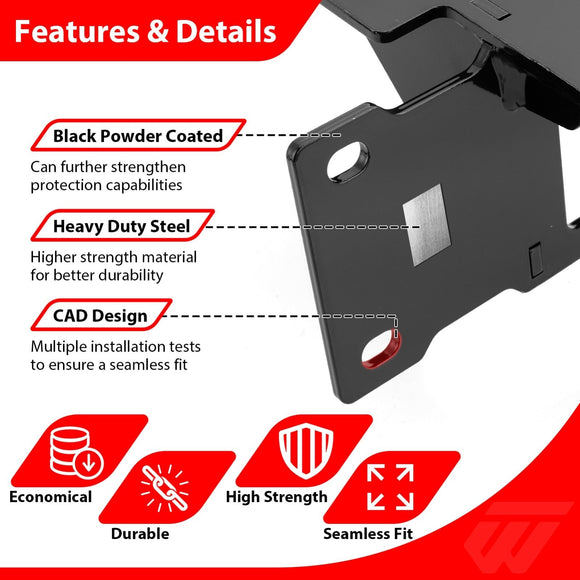

【3/16" Heavy-Duty Steel Construction】
Built with rugged 3/16" thick steel and a durable black powder-coated finish, this mount resists corrosion, abrasion, and harsh weather. Engineered to handle heavy towing, plowing, or off-road recovery tasks with confidence.
【No Modifications Required – Bolt-On Installation】
Upgrade your UTV hassle-free. This winch mount uses a direct bolt-on design with pre-drilled holes, eliminating the need for cutting or drilling. Includes step-by-step instructions for quick assembly.
【Complete Kit for Immediate Setup】
Everything you need is included: 1 Winch Mounting Plate, 1 Tube Gusset, 1 Standard Fairlead Adapter, and Easy-Follow Installation Instructions. Start mounting your winch right out of the box.

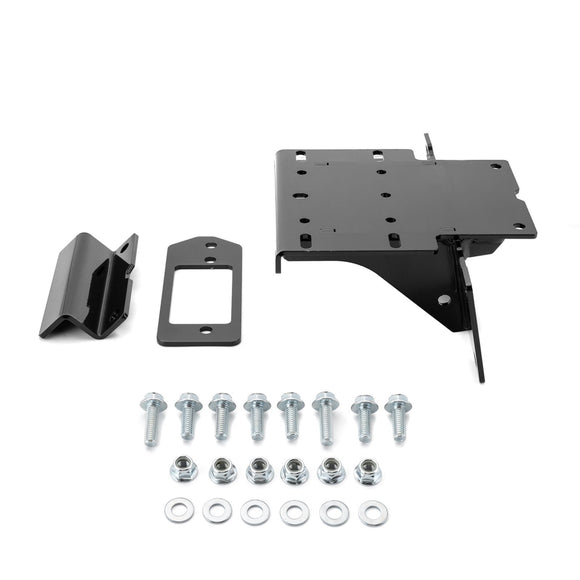

【Package Includes】
1 x Winch Mounting Plate
1 x Tube Gusset
1 x Standard Fairlead Adapter
1 x Installation Instructions
【Note】If you have an XR model or an aftermarket bumper, it will Not work with the following winches:
KFI: U45w-R2 / SE45w-R2 / AS-50wx
SUPERWINCH: TERRA 45 / LT4000UTV
SMITTYBUILT: XCR3.0 / XCR4.0
SUPERATV: WN-4500 (WIDE)
MILEMARKER: PE5000 (WIDE)
BRONCO: 2500 / 3500 (STD)
BADLANDS: 2-HOLE WINCHES
BADLANDS: WIDE WINCHES
BADLANDS: Apex 5500 (long DRUM)
CHAMPION: 2-HOLE WINCHES
CHAMPION: WIDE WINCHES
TRAKKER: KT2000 / KT4000(C)
VENOM: 4500 / 5000 (WIDE)
TRAVELLER: 4500 (WIDE)
EAGLE: 2000LBS (2-HOLE)
MASTERLOCK: 1500LB / 2955AT
Designed to work with the following winches:
KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / SE25 / SE35 / SE45-R2
KFI: U45w-R2 / SE45w-R2 (Non-XR ONLY)
KFI: AM-25 / AM-35 / AS-25 / AS-35
KFI: AS-50x
KFI: AS-50wx (Non-XR ONLY)
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
Requires Standard fairlead bracket #101715 (Non-XR ONLY).
WARN: VRX 45 / VRX 45-S
Requires Wide fairlead bracket #100695 (Non-XR ONLY).
WARN:AXON 35 / AXON 35-S / AXON 45RC
Requires Standard fairlead bracket #101715 (Non-XR ONLY).
WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
Requires Wide fairlead bracket #100695 (Non-XR ONLY).
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: RT40 / XT40
WARN: Vantage 2000-3000lbs / ProVantage 2500-3500lbs
WARN: Vantage 4000lbs / ProVantage 4500lbs
RAMSEY: ATV2500 / ATV3000
SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
SuperATV: WN-2500 * WN-3500
Requires Fairlead with 4.875" Bolt Up Pattern on XR Model Only
Listed models come with incorrect ATV roller fairleads.
Fairlead Options for XR Models ONLY (Not needed on standard Model)
KFI Synthetic Roller Fairlead (Standard)
ATV Hawse Fairlead Black
ATV Hawse Fairlead Polished
MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
MASTER LOCK: 1500lbs #2955AT
Requires roller fairlead with a 4.875" bolt pattern;
CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500 and 3500
BADLAND: 2-Hole Winches
BADLAND: Standard Winches
BADLAND: WIDE Winches
CHAMPION: 2-Hole Winches
CHAMPION: ATV 4-Hole Winches
CHAMPION:UTV 4-Hole Winches
CHAMPION: WIDE Winches
KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
KEEPER CORP. TRAKKER: KT2000
Requires roller fairlead with a 4.875" bolt pattern;
SMITTYBILT: XRC 2.0
Requires roller fairlead with a 4.875" bolt pattern;
Listed models come with incorrect ATV roller fairleads.
SMITTYBILT: XRC 3.0 / XRC 4.0
XGEAR: X3000 / X4000
4-Hole Standard (3.00" x 4.875" bolt pattern)
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
All with 3.00" x 4.875" bolt pattern mount-up
All with 3.00" x 6.600" bolt pattern mount-up
Traveller: 1078311
Traveller: 1078088 / 1078302
Requires roller fairlead with a 4.875" bolt pattern;
Possibly many others with the below standard mounting patterns, call to confirm.
4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
2-Hole (3.10" with rollers that are 4.875" bolt pattern)
QUADBOSS: RP25 / RP35
