Fitment List:
- 2004-2005 ATP (330, 500)
- 1998-2002 Diesel 4X4
- 2000-2002 Magnum 325 (all)
- 2003-2006 Magnum 330 (4x4)
- 1999-2002 Magnum 500 (all)
- 2002-2003 PVT 4x4, 6x6
- 1998-2000 Sportsman 335
- 2001-2003 Sportsman 400
- 1996-2003 Sportsman 500 (Base*HO)
- 1999-2008 Sportsman 6x6
- 2000-2003 Xpedition (325, 425)
- 2000-2002 Xplorer 2x4 (400)
- 1995-2002 Xplorer 4x4 (300, 400, 500)
- 1997 Xpress 400 4x4

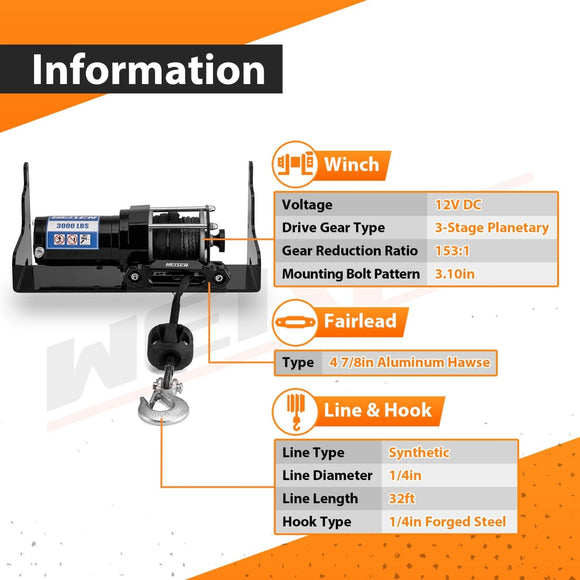

Specifications:
- Winch Type: Electric
- Voltage: 12 Volt DC
- Motor Type: Permanent Magnet Motor
- Drive Gear Type: 3-stage Planetary
- Gear Reduction Ratio 153:1
- Line Type: Synthetic
- Line Diameter (in): 1/4 inch
- Line Length (ft): 32 ft
- Max Line Pull: 3000lbs
- Line Speed: 13.6ft/min(No Load)/ 2.72ft/min(Full Load)
- Hook Type: 1/4 Inch Forged Steel
- Line Stopper Type: Maximum Diameter 1/2 inch Quality Rubber Line Stopper

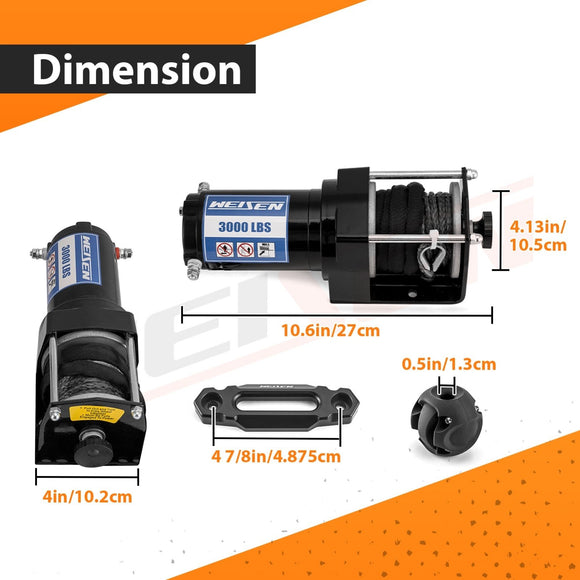

- Winch Mounting Bolt Pattern(in): 3.10 inch
- Fairlead Type: 4 7/8 inch Aluminum Hawse
- Remote Type: Wired Controller (adapted to handlebars) + Wireless Remote Control With 100ft Control Range
Features:
【Fitment】
This Electric Winch Kit fits 1996-2003 Sportsman 500 (Base*HO), 1995-2002 Xplorer 4x4 (300, 400, 500), 2003-2006 Magnum 330 (4x4), 2000-2003 Xpedition (325, 425), 1998-2002 Diesel 4X4 and etc. (Please check fitment before your purchase)

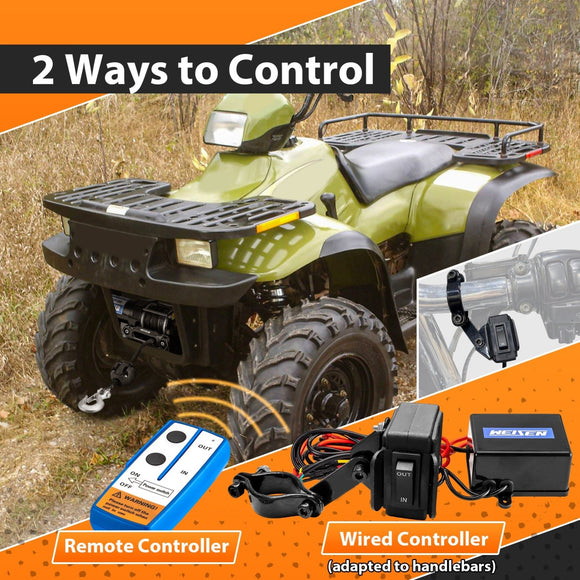

【Wired/Wireless Control】
Winch kits offer both wired and wireless controllers to control ROPE IN and ROPE OUT.
You can mount the wired controller directly to the ATV handlebar without modification or drilling, giving the handlebar a neat look. Or use the remote switch for wireless control. (Remote control range up to 100 feet), and you don't have to touch the dangerous rope directly, making it safer and more convenient for everyday use.
【3000 lbs Line Pull】
Equipped with a 3-stage Planetary Drive Gear system and 153:1 gear speed ratio that delivers reliable pulling power with a weight capacity of up to 3000 lbs. it excels in towing tasks such as pulling heavy loads, relieving stuck vehicles, and navigating challenging terrains.
【High Quality】
Made of 1/4" 32FT Synthetic Line, compared to steel cables, it can withstand more traction, is lighter and safer, won't rust, won't burr, and is easy to use.
The 4 7/8" Hawse Fairlead is a heavy-duty 6061 aluminum material + a corrosion resistant anodized black process, It can withstand harsh weather conditions and rough terrain and keep working normally.

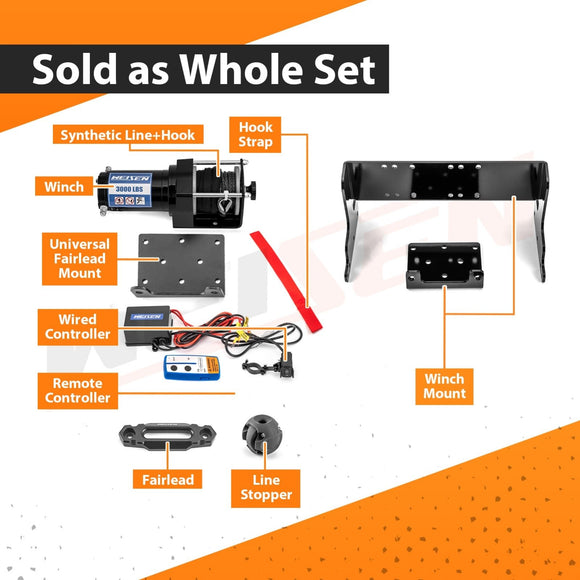

【Sold As Whole Set】

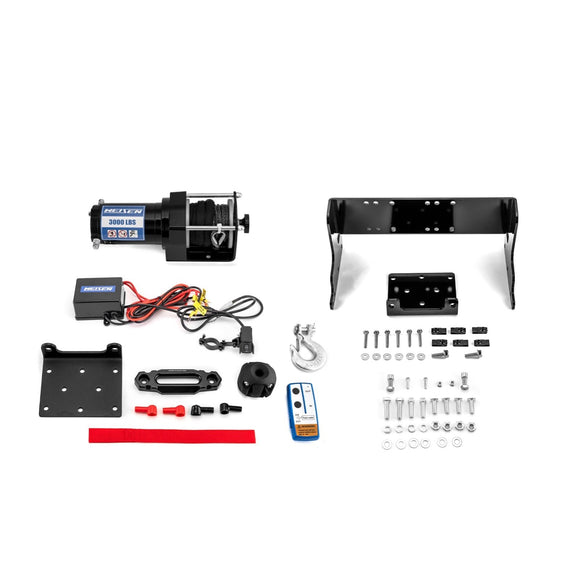

Package includes all needed parts:
1 x 3000lbs Electric Winch
1 x Winch Mounting Bracket
1 x Custom Fairlead Mounting Bracket
1 x Universal Fairlead Mounting Bracket
1 x 4 7/8" Aluminum Hawse Fairlead
1 x 1/4" Synthetic Line
1 x 1/4" Forged Steel Hook
1 x Line Stopper
1 x Wired Controller (adapted to handlebars)
1 x Wireless Remote Control
1 x Installation Instructions
