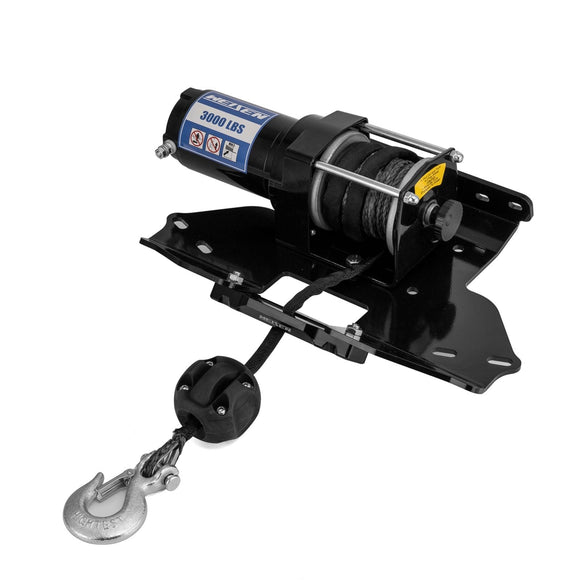

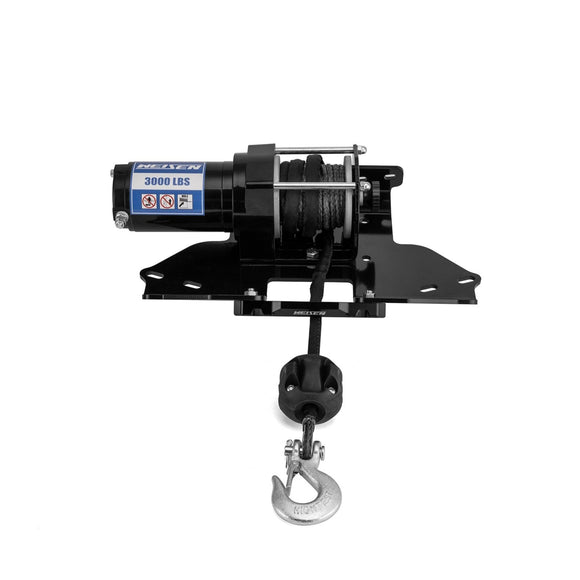

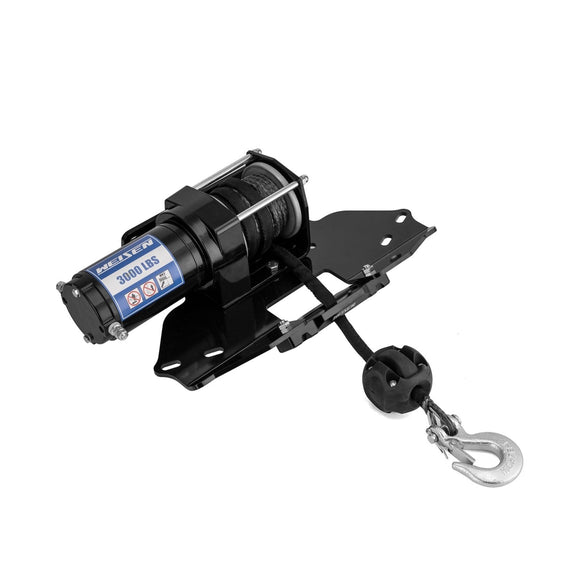

ATV 3000lb 12V Electric Winch Kit for 2005-2024 Brute Force 750 4x4 4x4i 4x4i EPS & 2005-2014 Kawasaki Brute Force 650 4x4

WeiSen SKU: 80310041

$309.99

Free shipping in United States

Arrives within 3-7 business days

Quality Assurance

Warranty: 1 Year

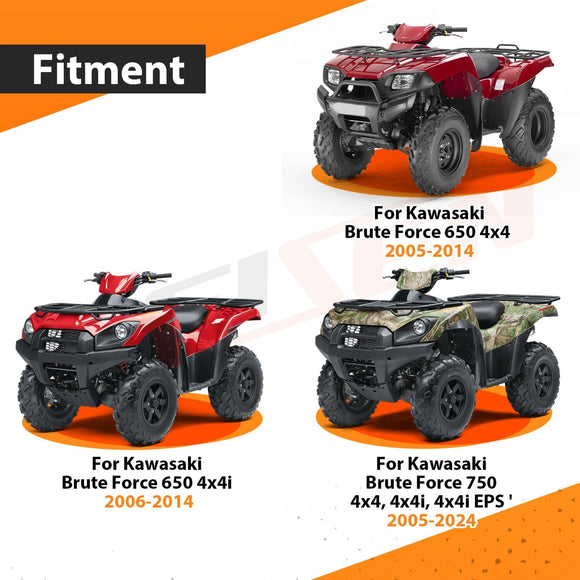

Fitment List:

  • 2005-2014 Kawasaki Brute Force 650 4x4
  • 2006-2014 Kawasaki Brute Force 650 4x4i
  • 2005-2024 Kawasaki Brute Force 750 4x4, 4x4i, 4x4i EPS

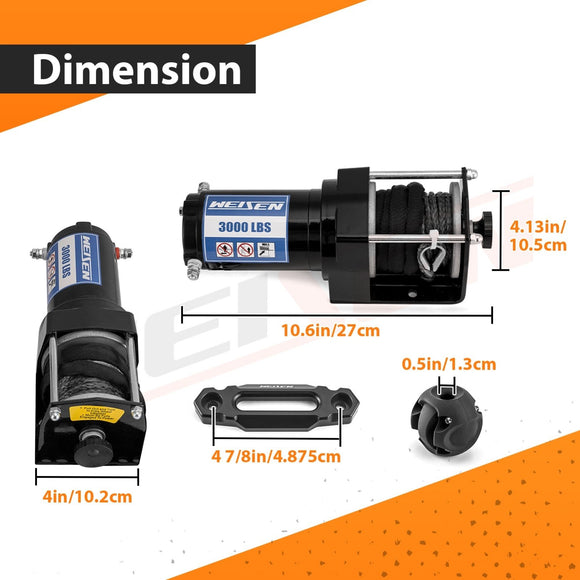

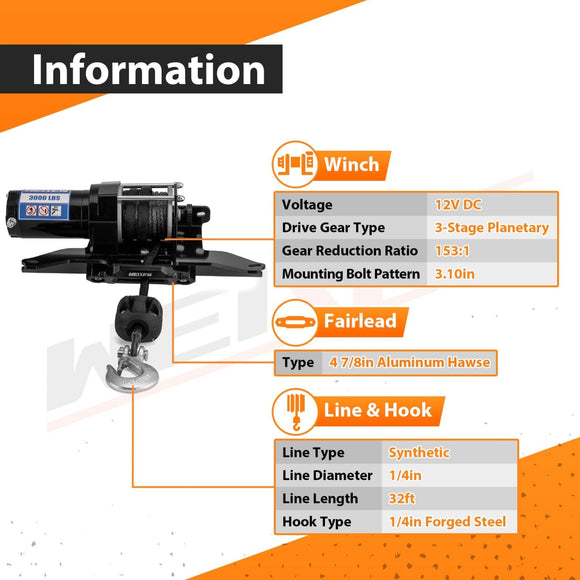

Specifications:

  • Winch Type: Electric
  • Voltage: 12 Volt DC
  • Motor Type: Permanent Magnet Motor
  • Drive Gear Type: 3-stage Planetary
  • Gear Reduction Ratio 153:1
  • Line Type: Synthetic
  • Line Diameter (in): 1/4 inch
  • Line Length (ft): 32 ft
  • Max Line Pull: 3000lbs
  • Line Speed: 13.6ft/min(No Load)/ 2.72ft/min(Full Load)
  • Hook Type: 1/4 Inch Forged Steel
  • Line Stopper Type: Maximum Diameter 1/2 inch Quality Rubber Line Stopper
  • Winch Mounting Bolt Pattern(in): 3.10 inch
  • Fairlead Type: 4 7/8 inch Aluminum Hawse
  • Remote Type: Wired Controller (adapted to handlebars) + Wireless Remote Control With 100ft Control Range

Features:

Fitment
This Electric Winch Kit fits 2005-2014 Kawasaki Brute Force 650 4x4, 2006-2014 Kawasaki Brute Force 650 4x4i and 2005-2024 Kawasaki Brute Force 750 4x4, 4x4i, 4x4i EPS. (Please check fitment before your purchase)

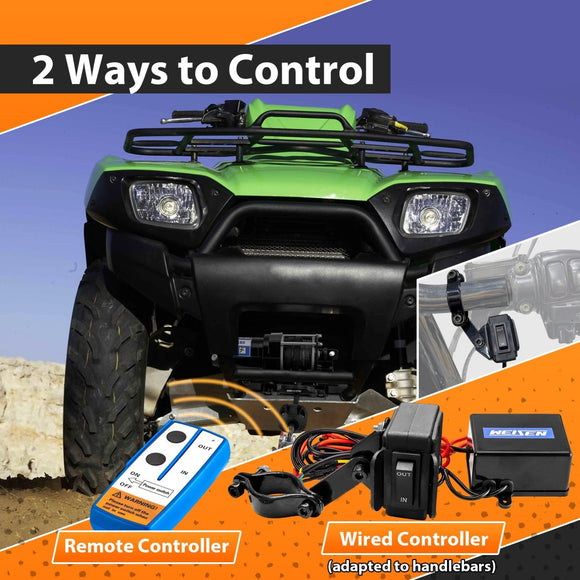

Wired/Wireless Control
Winch kits offer both wired and wireless controllers to control ROPE IN and ROPE OUT.
You can mount the wired controller directly to the ATV handlebar without modification or drilling, giving the handlebar a neat look. Or use the remote switch for wireless control. (Remote control range up to 100 feet), and you don't have to touch the dangerous rope directly, making it safer and more convenient for everyday use.

3000 lbs Line Pull
Equipped with a 3-stage Planetary Drive Gear system and 153:1 gear speed ratio that delivers reliable pulling power with a weight capacity of up to 3000 lbs. it excels in towing tasks such as pulling heavy loads, relieving stuck vehicles, and navigating challenging terrains.

High Quality
Made of 1/4" 32FT Synthetic Line, compared to steel cables, it can withstand more traction, is lighter and safer, won't rust, won't burr, and is easy to use.
The 4 7/8" Hawse Fairlead is a heavy-duty 6061 aluminum material + a corrosion resistant anodized black process, It can withstand harsh weather conditions and rough terrain and keep working normally.

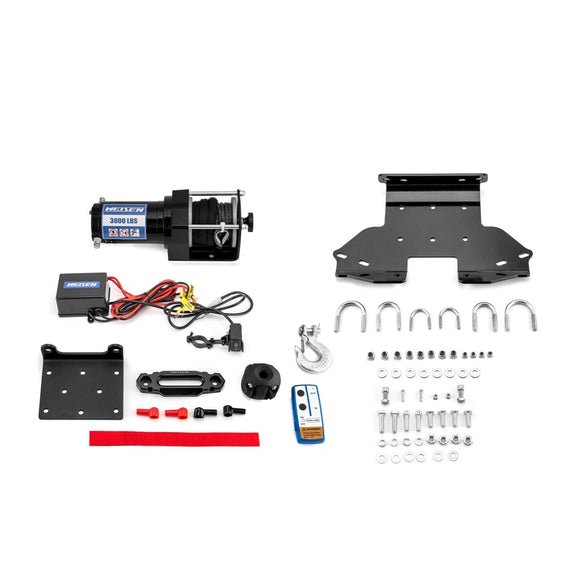

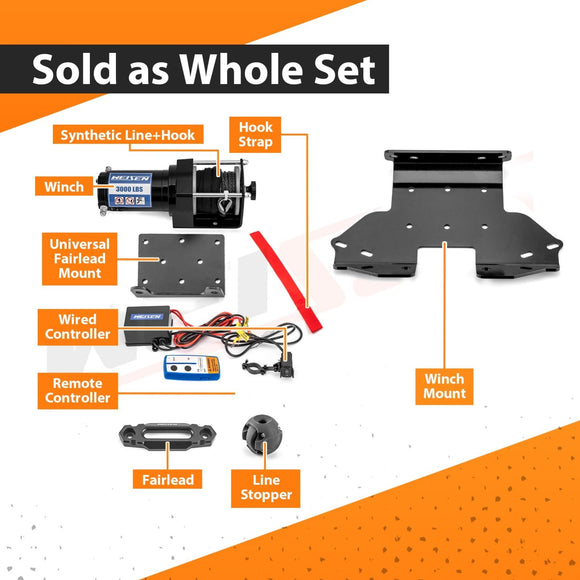

Sold As Whole Set
Package includes all needed parts:
1 x 3000lbs Electric Winch
1 x Winch Mounting Bracket
1 x Universal Fairlead Mounting Bracket
1 x 4 7/8" Aluminum Hawse Fairlead
1 x 1/4" Synthetic Line
1 x 1/4" Forged Steel Hook
1 x Line Stopper
1 x Wired Controller (adapted to handlebars)
1 x Wireless Remote Control
1 x Installation Instructions
