Fitment:
- Fit Defender HD5 2017-2021
- Fit Defender HD7 2022-2026
- Fit Defender HD8 2016-2021
- Fit Defender HD9 2022-2026
- Fit Defender HD10 2016-2026
- Fit Defender MAX HD7 2022-2026
- Fit Defender MAX HD8 2017-2021
- Fit Defender MAX HD9 2022-2026
- Fit Defender MAX HD10 2017-2026
- Fit Defender 6x6 (All) 2020-2026
- Fit Defender PRO (All) 2020-2026
Specifications of Winch Mount Plate:

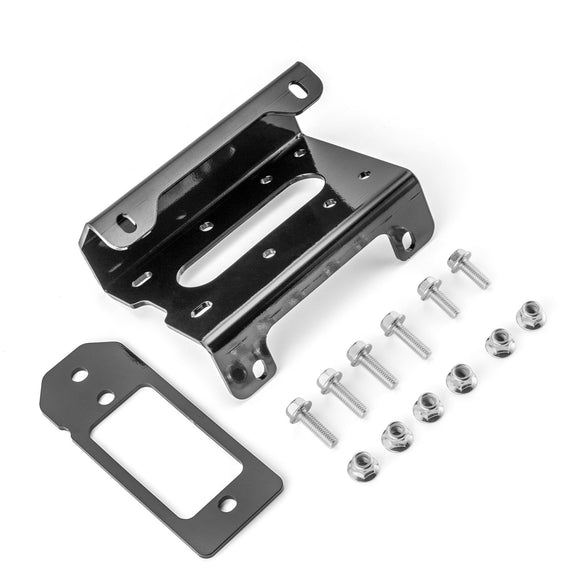

- Item: Winch Mounting Bracket Kit
- Material: Steel
- Color: Black
- Process: Powder Coated
Features of Winch Mount Plate:
【Compatibility】
This winch mounting bracket kit is compatible with Defender HD/MAX HD 5 7 8 9 10 (2016-2026), fits Defender 6x6/PRO (All) 2020-2026.
【Wide Application】
It can work with most US Standard winches and fairleads.

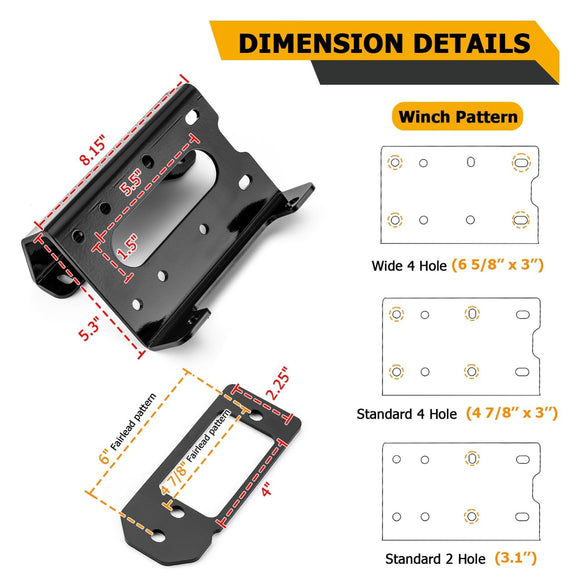

Winch Mounting Pattern: ①3"x4 7/8" (76mm x 124mm), ②3"x 6 5/8" (76mm x 169mm), ③3"(76mm ).
Fairlead Mounting Pattern: ①4 7/8" (124mm), ②6" (152mm).
【Secure Mounting】
The winch mounting bracket kit provides secure and stable mounting, ensuring the winch remains firmly in place during operation.
【Premium Construction】
Constructed using premium quality materials to ensure durability, strength and longevity, the kit is built to last.
【Installation】

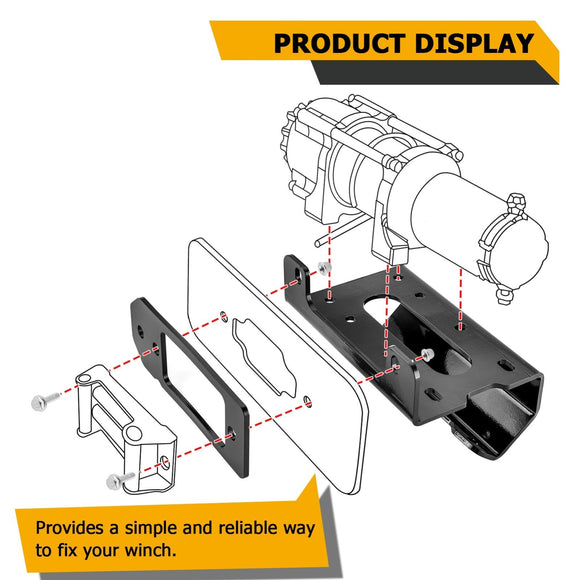

Easy bolt-on application, no drilling or modification is required.
Specifications of Winch Fairlead:

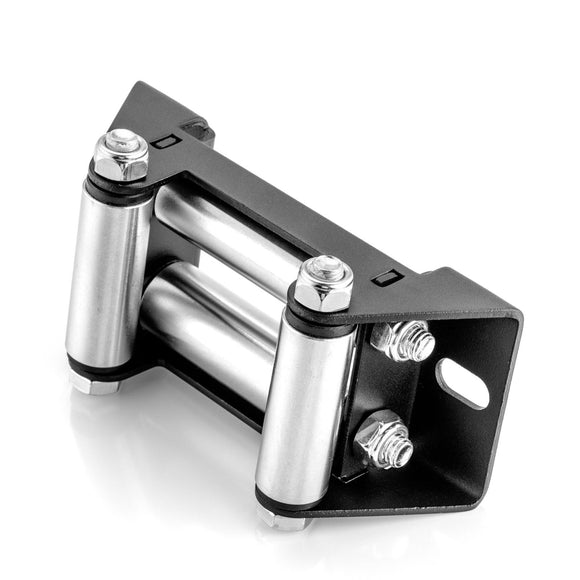

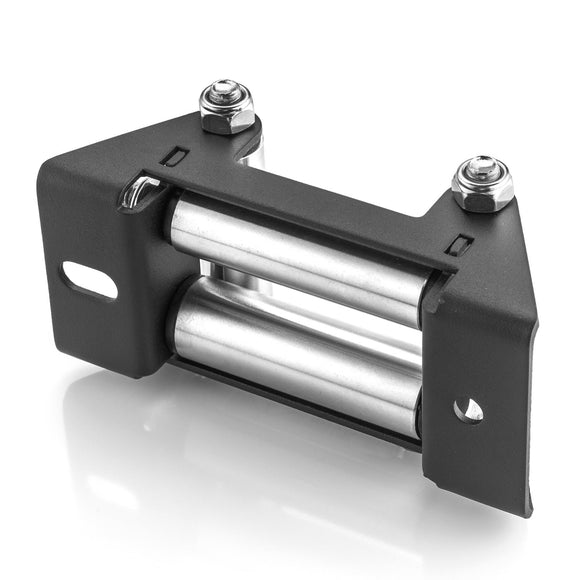

- Item: 4 7/8" Winch Roller Fairlead
- Material: #45 Steel
- Color: Black
- Process: Powder Coated
- Load Capacity: 2000-3500lbs
- Mounting Pattern: 4 7/8" INCH (124 MM)
Features of Winch Fairlead:
【Compatibility】
This Roller Fairlead is compatible with 4 7/8" INCH (124 MM) BOLT CENTERS FOR 2000-3500 LBS ATV WINCHES.
【Function】
This 4 7/8" Winch Roller Fairlead is designed to protect synthetic ropes from damage and minimize friction, this fairlead ensures a smooth and safe winching experience, reducing wear and tear on your equipment and maximizing your investment.
【Sturdy & Durable】
Made from premium Steel, this 4 7/8" Winch Roller Fairlead is built to withstand heavy use and harsh weather conditions, ensuring long-lasting performance and value for money.
【Easy To Install】
With its simple, bolt-on installation process, this fairlead can be easily attached to your winch and vehicle, allowing you to get back to off-road adventures smoothly.

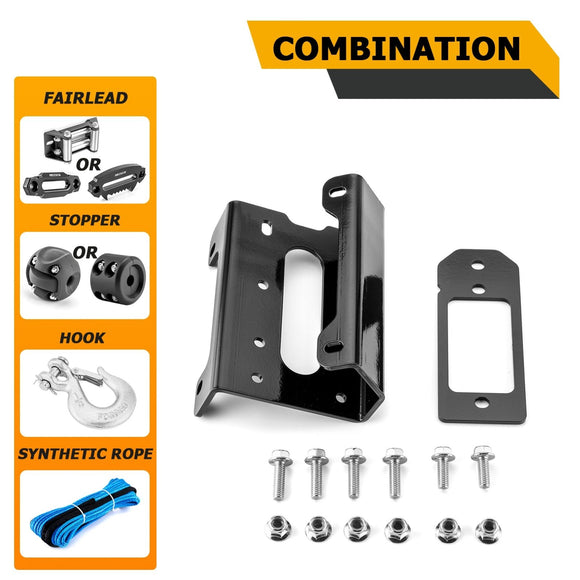

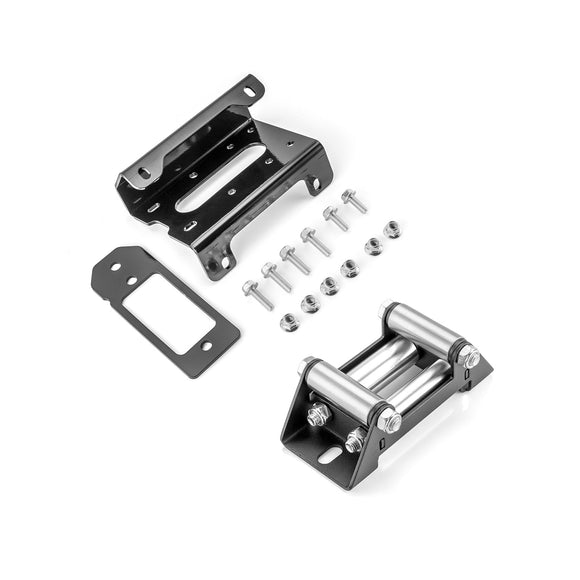

Package Includes:
- depending on the item you choose
- 1 X Installation Instruction
Designed to work with the following winches:
Fit KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
Fit KFI: AM-25 / AM-35 / AS-25 / AS-35
Fit KFI: AS-50 / AS-50w
Fit WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
Fit WARN: AXON 35 / AXON 35-S / AXON 45RC / AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
Fit WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
Fit WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
Fit WARN: RT40 / XT40
Fit WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
Fit WARN: Vantage 4000lbs / Provantage 4500lbs
Fit RAMSEY: ATV2500 / ATV3000
Fit SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
Fit MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
Fit MASTER LOCK: 1500lbs #2955AT
Requires roller fairlead with a 4.875" bolt pattern; available if needed
Fit CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500, 3500
Fit BADLAND: 2-Hole Winches
Fit BADLAND: Standard Winches
Fit BADLAND: WIDE Winches
Fit CHAMPION: 2-Hole Winches
Fit CHAMPION: Standard Winches
Fit CHAMPION: WIDE Winches
Fit KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
Fit KEEPER CORP. TRAKKER: KT2000
Requires roller fairlead with a 4.875" bolt pattern; available if needed
Fit SMITTYBILT: XRC 2.0
Requires roller fairlead with a 4.875" bolt pattern; available if needed
Listed models come with incorrect ATV roller fairleads.
Fit SMITTYBILT: XRC 3.0 / XRC 4.0
Fit XGEAR: X3000 / X4000
4-Hole Standard (3.00" x 4.875" bolt pattern)
Fit VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
All with 3.00" x 4.875" bolt pattern mount-up.
All with 3.00" x 6.600" bolt pattern mount-up.
Fit Traveller: 1078311
Fit Traveller: 1078088 / 1078302
Requires roller fairlead with a 4.875" bolt pattern; available if needd
Possibly many others with the below standard mounting patterns, call to confirm.
4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
2-Hole (3.10" with rollers that are 4.875" bolt pattern)
Fit QUADBOSS: RP25 / RP35
