Fitment:
- Fit King Quad 450 All 2007-2010
- Fit King Quad 500 AXI 2009 & 2011-2026
- Fit King Quad 700 All 2005-2007
- Fit King Quad 750 All 2008-2026
Specifications:
- Item: ATV Winch Mounting Bracket

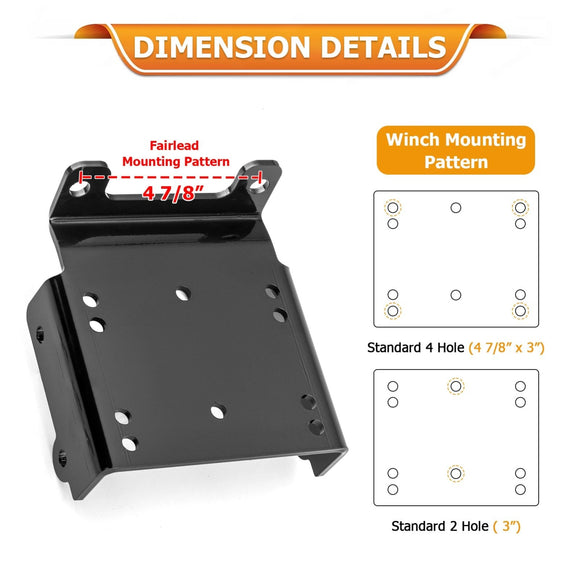

- Size: Winch Mounting Pattern: ①3"x4 7/8" (76mm x 124mm), ②3.10"(76mm)
- Fairlead Mounting Pattern: 4 7/8" (124mm)
- Material: Heavy-Duty Steel
- Process: Black Powder Coated
Features:

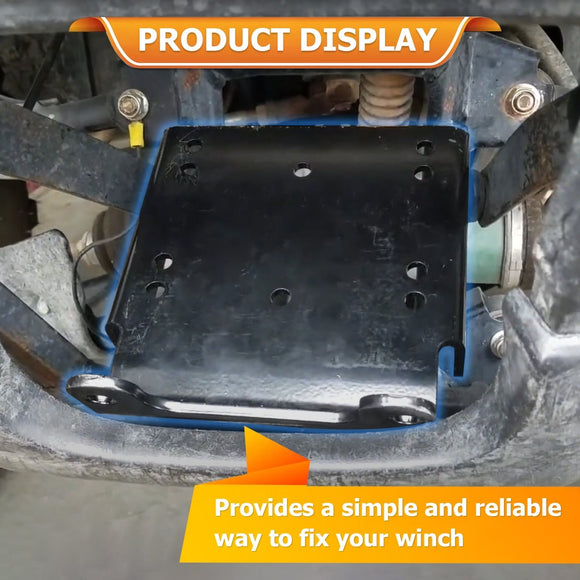

【Winch Mount】An Ideal Mount To Hold The Winches
Provide mounting holes for installing and securing the winch simply and reliably.
【Wide Compatibility】Most U.S. Standard Winches & Fairleads
Winch Mounting Pattern: ①3"x4 7/8" (76mm x 124mm), ②3.10"(76mm)
Fairlead Mounting Pattern: 4 7/8" (124mm)

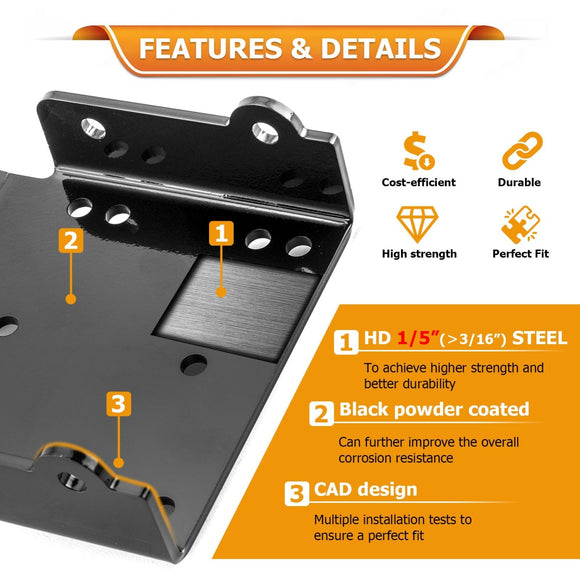

【Upgrade Material】 Made Of Heavy-Duty Steel
Solid steel makes it high strength, it could be more durable. So you don't need to do frequent replacements.
【Process Treatment】 Black Powder Coated Surface
The Special surface technology makes it more resistant to rust, thus extending its life and maintaining the aesthetics of your vehicle.
【Precision Assurance】 CAD Designed & Multiple Fitment Tests
Through Computer-aided design and Multiple Fitment Tests to ensure the precise fit.
You could buy a suitable product the first time, which reduces your worries.
【Easy Installation】Bolt-On Application
With its simple bolt-on design, using conventional tools, no drilling or modification is required.
【Professional & Reliable Service】Powerful Support Team
We could reply to you and provide you with a full range of satisfactory services and solve your problem
Designed to work with the following winches:
Fit KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
Fit KFI: AM-25 / AM-35 / AS-25 / AS-35
Fit KFI: AS-50 (requires purchase of ATV-MR)
Fit WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
Fit WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
Fit WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
Fit WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
Fit RAMSEY: ATV2500 / ATV3000
Fit SUPERWINCH: Terra25 / Terra35 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
Fit MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
Fit MASTER LOCK: 1500lbs #2955AT
Requires roller fairlead with a 4.875" bolt pattern;
Fit CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500, 3500
Fit BADLAND: 2-Hole Winches
Fit BADLAND: Standard Winches
Fit CHAMPION: 2-Hole Winches
Fit CHAMPION: Standard Winches
Fit KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C
Fit KEEPER CORP. TRAKKER: KT2000
Requires roller fairlead with a 4.875" bolt pattern;
Fit SMITTYBILT: XRC 2.0
Requires roller fairlead with a 4.875" bolt pattern;
Listed models come with incorrect ATV roller fairleads.
Fit SMITTYBILT: XRC 3.0 / XRC 4.0
Fit XGEAR: X3000 / X4000
4-Hole Standard (3.00" x 4.875" bolt pattern)
Fit VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Standard ONLY)
4-Hole Standard 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern.
Fit Traveller: 1078088 / 1078302
Requires roller fairlead with a 4.875" bolt pattern;
Possibly many others with the below standard mounting patterns, call to confirm.
4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
2-Hole (3.10" with rollers that are 4.875" bolt pattern)
Fit QUADBOSS: RP25 / RP35

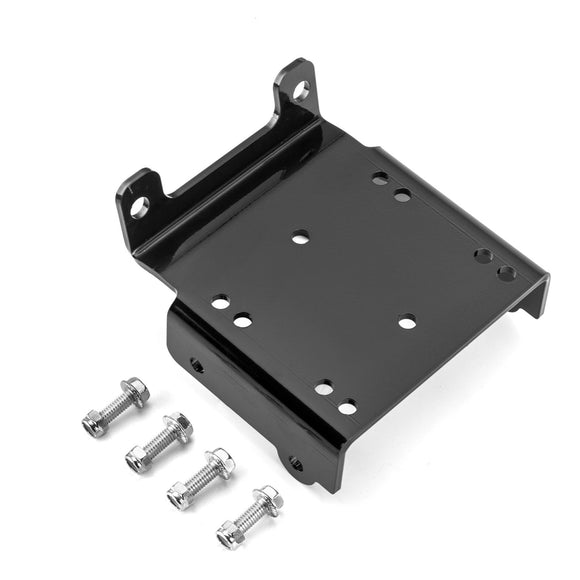

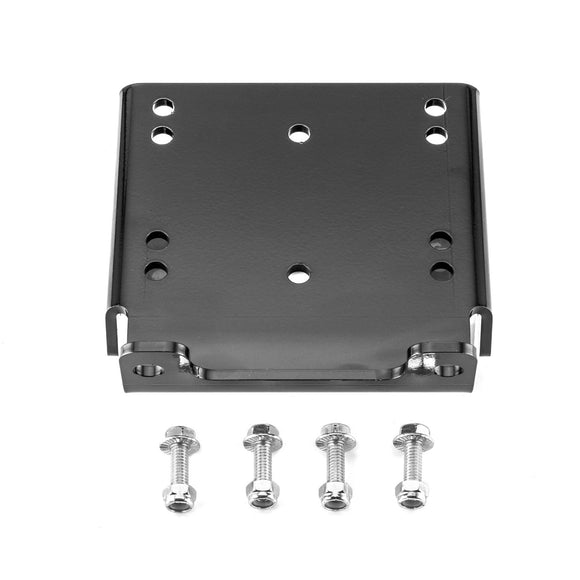

Package list:
- 1x winch mounting bracket
- 1x Installation Instruction
