Fitment:
【Ranger Fullsize Models】
Fits Polaris Ranger 500 (2009-2010)
Fits Ranger 570(Round Tube Frame) (2016-Current)
Fits Ranger 700 (2009)
Fits Ranger 800 (2010-2014)
Fits Ranger 800 6x6 2010-2016
Fits Ranger Crew 570(Round Tube Frame) (2017-Current)**Note**
Fits Ranger Crew 800 (2010-2013)
Fits Ranger Crew 800 (2014)**Note**
Fits Ranger Crew 900 Diesel (2012-2014)**Note**
Fits Ranger 900 Diesel (2011-2014)
Fits Ranger XP 800 (2012)
【Ranger MidSize Models】
Fits Polaris Ranger 400 (Mid-Size) 2010-2014
Fits Ranger 500 (Mid-Size) 2011-2013
Fits Ranger 500 (Mid-Size) 2017-2022
Fits Ranger Crew 500 (Mid-Size) 2011-2013 **Note**
Fits Ranger 570 (Mid-Size) 2014-2021
Fits Ranger Crew 570 (Mid-Size) 2014-2021 **Note**
Fits Ranger 800 (Mid-Size) 2013-2014
Fits Ranger ETX (Mid-Size) 2015-2016
Fits Ranger EV (Mid-Size) 2010-2022
**Note**: Requires the purchase of wire extension kit Due to location of battery on Ranger.
【Caution】Compatible with factory front bumper(#1023525-458, 1020136-458), Not fit #1018353-458.
Specifications:
- Item: Winch Mounting Bracket
- Material: Heavy-Duty Steel
- Process: Black Powder Coated

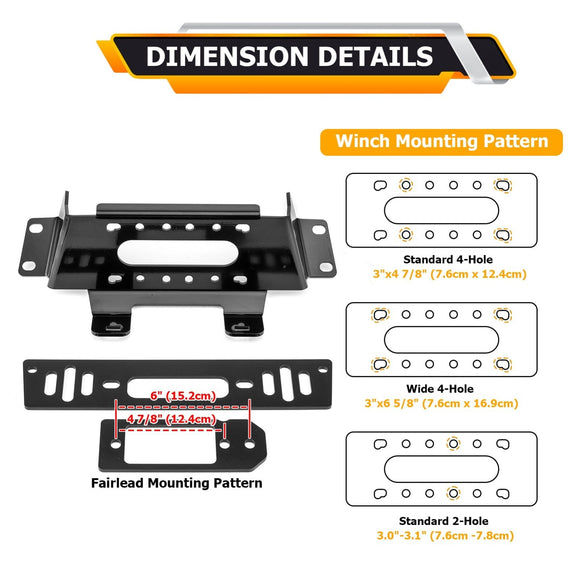

- Winch Mounting Pattern: ①Standard 4-Hole 3"x4 7/8" (76mm x 124mm), ②Wide 4-Hole 6 5/8" x 3" (76mm x 169mm), ③2-Hole 3.10"(78mm )/3"(76mm)
- Fairlead Mounting Pattern: 4 7/8" (124mm), ②6" (152mm)
- Installation: No Drill
Features:
【Upgrade Off-Road Performance】

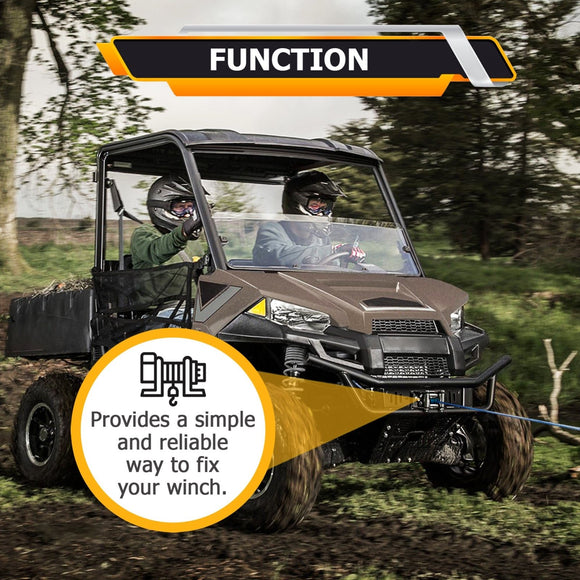

Specifically designed to mount a winch to your vehicle, providing mounting holes for installing and securing the winch simply and reliably. This winch mounting bracket is an essential accessory to upgrade your UTV's off-road function and performance.
【Winch Mounting & Fairlead Pattern】
Compatible with Most U.S. Standard Winches & Fairleads (Please check the size before purchasing). Winch Mounting Pattern:①Standard 4-Hole 3"x4 7/8" (76mm x 124mm), ②Wide 4-Hole 6 5/8" x 3" (76mm x 169mm), ③2-Hole 3.10"(78mm )/3"(76mm), Fairlead Mounting Pattern: ①4 7/8" (124mm), ②6" (152mm).

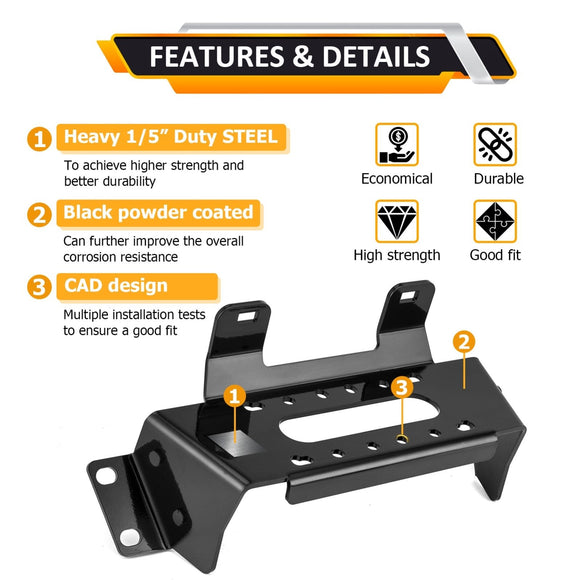

【Heacy Duty Construction】
Constructed from high-strength materials and rust-resistant finish, ensuring durability and reliability in any weather condition and heavy use.

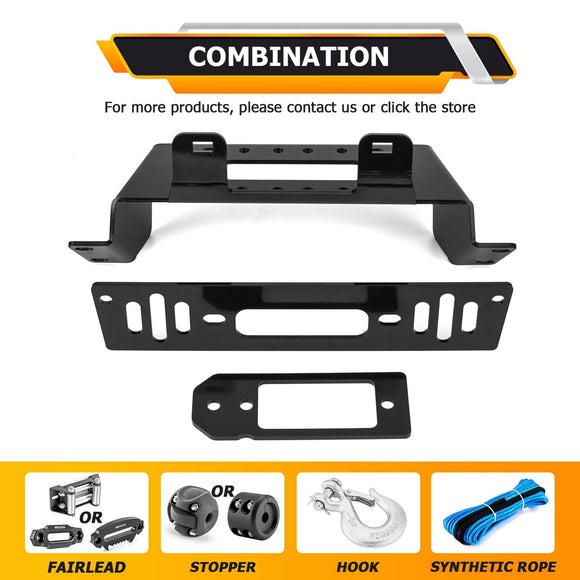

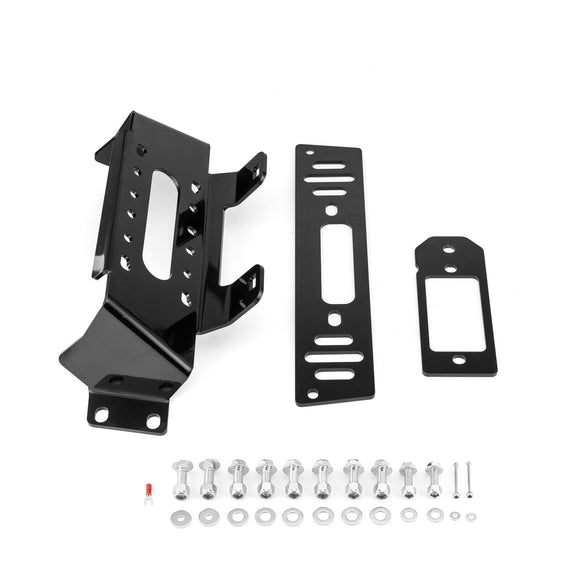

Package Includes:
- 1x Winch Mounting Plate
- 1x Fairlead Mounting Plate
- 1x Installation Instructions
Designed to work with the following winches:
Fit KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / SE25 / SE35 / SE45-R2 / U45w-R2 / SE45w-R2
Fit KFI: AM-25 / AM-35 / AS-25 / AS-35
Fit KFI: AS-50x / AS-50wx
Fit WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
May require adding washers to shim up to fit due to size
Fit WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
Fit WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40
Fit WARN: Vantage 2000-3000lbs / ProVantage 2500-3500lbs
Fit WARN: Vantage 4000lbs / ProVantage 4500lbs
Fit RAMSEY: ATV2500 / ATV3000
Fit SUPERWINCH:Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
Fit MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
Fit MASTER LOCK: 1500lbs #2955AT
Requires roller fairlead with a 4.875" bolt pattern.
Fit CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500, 3500
Fit BADLAND: 2-Hole Winches
Fit BADLAND: Standard Winches
Fit BADLAND: WIDE Winches
Fit BADLAND: Apex 5500 (Short and Long Drum)
May require adding washers to shim up to fit due to size
Fit CHAMPION: 2-Hole Winches
Fit CHAMPION: ATV 4-Hole Winches
Fit CHAMPION: UTV 4-Hole Winches
Fit CHAMPION: WIDE Winches
Fit KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
Fit KEEPER CORP. TRAKKER: KT2000
Requires roller fairlead with a 4.875" bolt pattern.
Fit SMITTYBILT: XRC 2.0
Requires roller fairlead with a 4.875" bolt pattern.
Listed models come with incorrect ATV roller fairleads.
Fit SMITTYBILT: XRC 3.0 / XRC 4.0
Fit XGEAR: X3000 / X4000
Fit 4-Hole Standard (3.00" x 4.875" bolt pattern)
Fit VENOM: 4000 / 4500 / 5000 (Hardcore Series)
All with 3.00" x 6.600" bolt pattern mount-up
Fit VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Standard ONLY)
Fit 4-Hole Standard 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern
Fit Traveller: 1078311
Fit Traveller: 1078088 / 1078302
Requires roller fairlead with a 4.875" bolt pattern.
Possibly many others with the below standard mounting patterns, call to confirm.
Fit 4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
Fit 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
Fit QUADBOSS: RP25 / RP35
Possibly many others with the below standard mounting patterns, call to confirm.
Fit 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
