Fitment:
- Compatible with YAMAHA RHINO 450 2006-2011
- Compatible with RHINO 660 2003-2007
- Compatible with RHINO 700 2008-2013
Specifications:

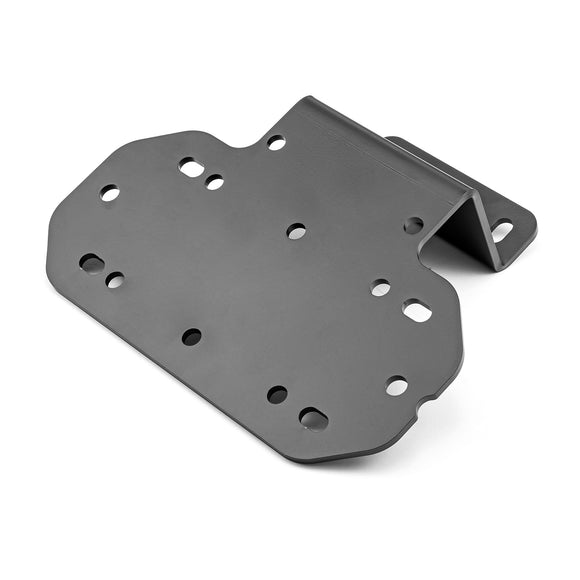

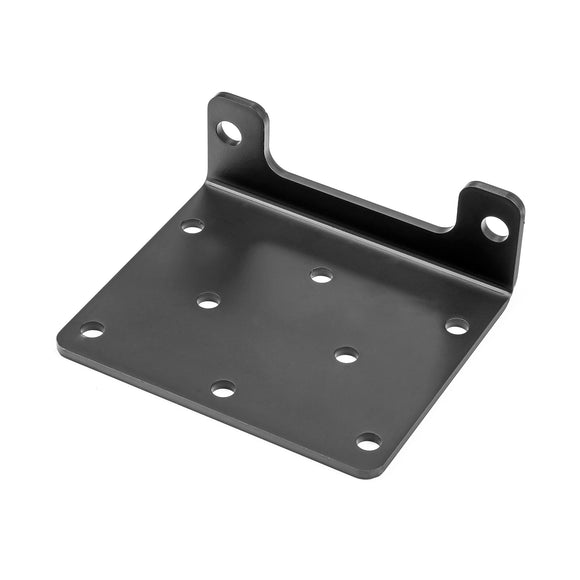

- Item: Winch Mount
- Material: Heavy-Duty Steel
- Color: Gloss Black
- Process: Powder Coated
Features:
【Fitment】

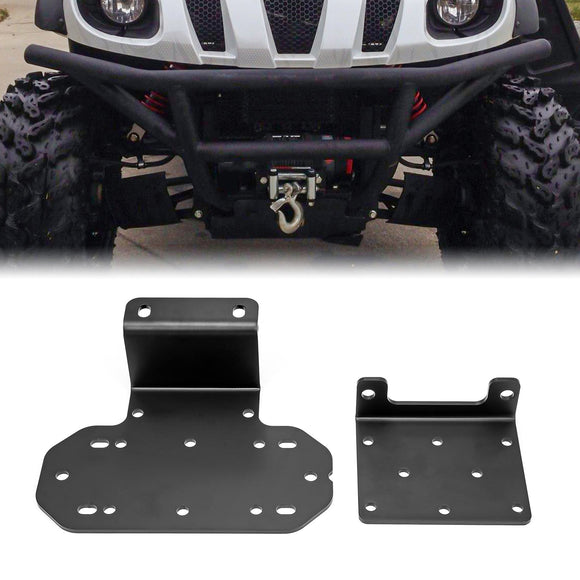

This winch mount fits YAMAHA RHINO 450 2006-2011, fits RHINO 660 2003-2007, fits RHINO 700 2008-2013.
【Function】
It is designed to mount a winch to your vehicle, providing mounting holes for installing and securing the winch simply and reliably.
【Sturdy And Durable】
Made from heavy-duty steel, this kit is built to withstand heavy use and harsh weather conditions, ensuring long-lasting performance and value for money.

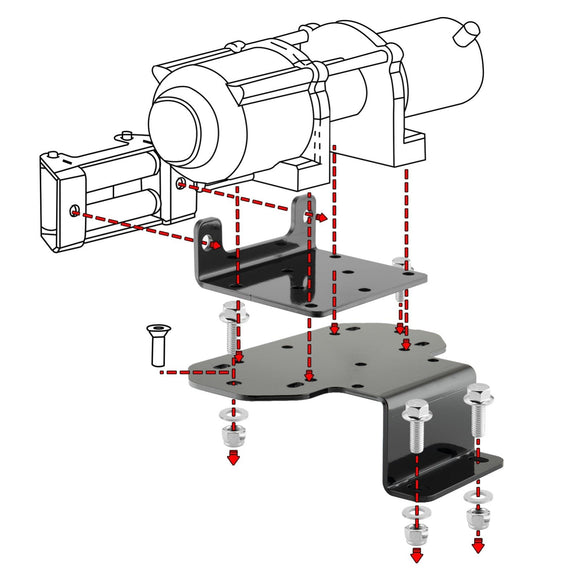

【Easy Installation】
Quick and easy to install, this bracket comes with all necessary mounting hardware for a hassle-free setup.no drilling or cutting is required.

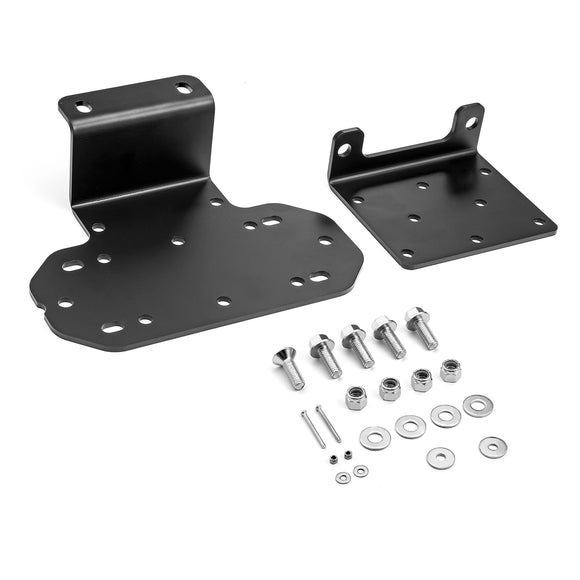

Package Included:
1 X Winch Mounting bracket Kit with necessary hardware
1 X Installation Instructions.
Designed to work with the following winches:
Fit KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
Fit KFI: AS-50 / AS-50w
Fit WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
Fit WARN: VRX 45 / VRX 45-S
Fit WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
Fit WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
Fit WARN: RT40 / XT40
Fit WARN: Vantage 2000-3000lb (Will NOT fit Vantage 4000 due to motor lead orientation)
Fit WARN: ProVantage 2500-4500lbs
Fit ProVantage 3500 and 4500 will require lead rotation.
Fit WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
Fit WARN: VRX 45 / VRX 45-S
Fit WARN: AXON 35 / AXON 35-S / AXON 45RC
Fit WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
Fit RAMSEY : ATV2500 / ATV3000
Fit SUPERWINCH : Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
Fit MILE MARKER : PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
Fit CYCLE COUNTRY : Work Power 1500 and 2500 / Powermax 2500 and 3500
Fit BADLAND 2-Hole Winches : 68146 / 61258 / 61297 / 61840
Fit BADLAND Standard Winches : 68145 / 61604 / 61257 / 61383
Fit BADLAND WIDE Winches : 61384 / 68144 / 61605
Fit CHAMPION 2-Hole Winches : 10028 / 10032 / 12001 / 12002 / 12003 / 12004 / 13001 / 13005 / 100127 / C20049 / C20051 / C20249 / C30045 / C30145
Fit CHAMPION Standard Winches : 10013 / 10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 13502 / 14001 / 14051 / 14061 / 14560 / 100129 / 100218 / 100243 / 100335
Fit CHAMPIONWIDE Winches : 14008 / 14501 / 14551 / 14552 / 40252
Fit CHAMPION:14001 and 14061 / 14051 / 14560
Fit KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
Fit KEEPER CORP. TRAKKER :KT2000
Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
Fit SMITTYBILT : XRC 2.0
Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
Listed models come with incorrect ATV roller fairleads.
Fit SMITTYBILT : XRC 3.0 / XRC 4.0
Fit XGEAR: X3000 / X4000

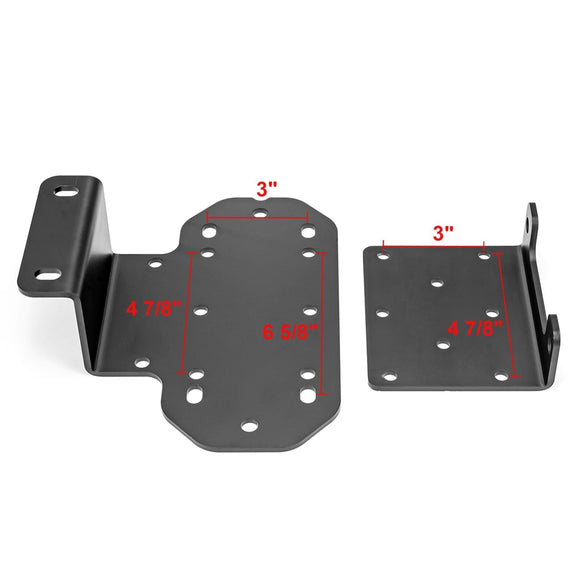

4-Hole Standard (3.00" x 4.875" bolt pattern)
Fit VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Fit Hardcore Series)
All with 3.00" x 4.875" bolt pattern mount-up.
All with 3.00" x 6.600" bolt pattern mount-up.
Fit QUADBOSS: RP25 / RP35
Fit Traveller:1078311
Fit Traveller:1078088 / 1078302
Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF

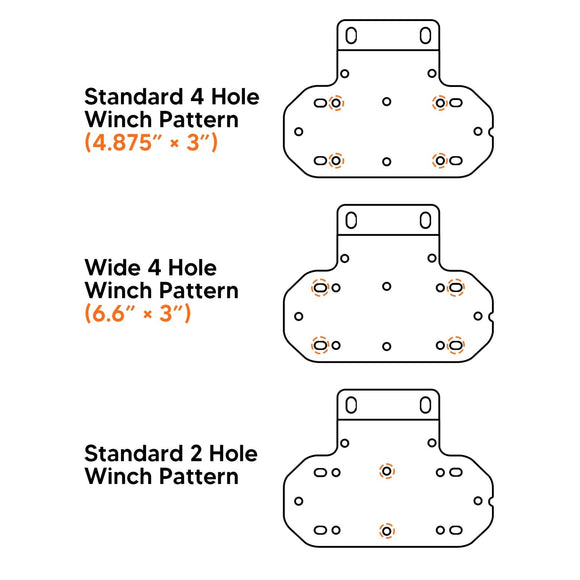

Possibly many others with the below standard mounting patterns, call to confirm.
4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
2-Hole (3.10" with rollers that are 4.875" bolt pattern)
